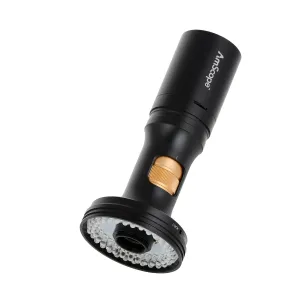

AmScope DM756A-U830 DM756 Series 8.3MP USB All-in-One Digital Microscope 0.35X-5.6X Magnification w/ Zoom Optics

Key Features:

• Expanded 0.35X-5.6X zoom magnification range using the 1X and 0.5X objective lenses
• Part of our DM756 line of modular digital microscopes, providing a new level of functionality and convenience
• 8.3MP digital imaging using USB 2.0 for optimal compatibility and simplicity
• Includes our professional microscopy software for capturing photos and videos, with advanced editing and measurement tools
• 60-LED ring-light uses magnetic coupling for effortless attachment and removal
• Can be used with our large range of support systems, including table stands and boom stands. Mounts to 50mm collars, or 76mm collars using an optional adapter

A Revolutionary Design

The DM756 line of digital microscopes offers a new level of functionality and convenience. These all-in-one digital imaging solutions are available with USB, Wi-Fi, or HDMI connectivity to suit any workflow, with the ability to view and capture live video and photos. The sleek design is both attractive and functional, and can be used with our most popular table stands, boom stands, and articulating arms. Best of all, the microscopes use a modular design with multiple magnification and illumination options so you can customize them to suit your needs.

This 8.3MP USB model combines ultra-high definition digital imaging with the precision optics of the DM756 series. Connect the microscope to your desktop or notebook computer to start working with this powerful microscopy system (requires additional powered USB port). Our professional software allows you to view live images on your computer, and capture photos and videos in multiple formats. Use the expansive set of measurement and notation tools, or the real-time stitching and focus-stacking functions to capture incredibly detailed images.

Modular Optics

The amazing utility of this microscope begins with its optics. At its core is a 0.7X-5.6X continuous optical zoom. This allows you to quickly adjust the level of detail as needed. By default, the microscope is equipped with a 1X objective lens with a considerable 80mm working distance. A range of additional objective lenses are available to cover different magnifications and working distances. For even greater flexibility, an RMS lens adapter is also available to mount traditional microscope objective lenses.

Out of the box, the DM0756 provides 0.7X-5.6X optical magnification using the 1X objective lens. This version also includes a 0.5X objective lens for 0.35X-2.8X magnification with increased field-of-view and working distance. Optional lenses are available for further expansion.

Illumination

The microscope is equipped with an LED ring-light for cool, even illumination. Since the illuminator is attached to the microscope, the light will always be where you need it. 60 individual LEDs blanket the subject with light, daylight-balanced at 6500K for ideal imaging. Following the theme of modularity, the ring-light uses magnetic coupling so it can be effortlessly removed or attached as needed.

Support Options

DM756 series microscopes are designed to be used with a range of support systems, including table stands, boom stands, and articulating stands. The microscope can be mounted in 50mm collars, or combined with the AD-SZ76 adapter to fit the 76mm collars used by our most popular stands.
