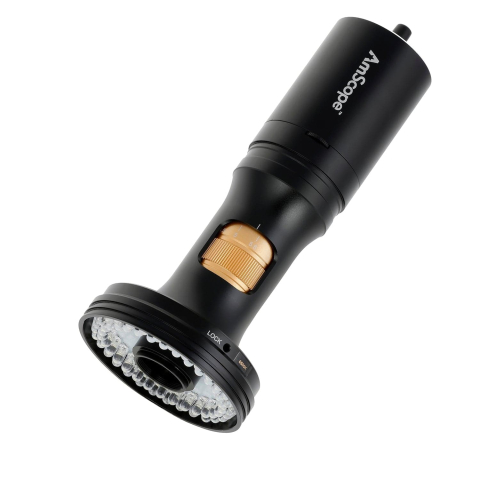

AmScope DM756-W1080 1080p Wi-Fi/USB All-in-One Monocular Digital Microscope 0.7X-5.6X Magnification w/ Zoom Optics

AmScope DM756 Series 1080p Wi-Fi/USB All-in-One Monocular Digital Microscope 0.7X-5.6X Magnification with Zoom Optics

• 0.7X-5.6X zoom magnification range
• Part of our DM756 line of modular digital microscopes, providing a new level of functionality and convenience
• 1080p/2MP digital imaging using USB and wi-fi connectivity allows you to view and capture live images on your computer or mobile device
• Includes our professional microscopy software for capturing photos and videos, with advanced editing and measurement tools
• 60-LED ring-light uses magnetic coupling for effortless attachment and removal
• Can be used with our large range of support systems, including table stands and boom stands. Mounts to 50mm collars, or 76mm collars using an optional adapter

A Revolutionary Design

The DM756 line of digital microscopes offers a new level of functionality and convenience. These all-in-one digital imaging solutions are available with USB, Wi-Fi, or HDMI connectivity to suit any workflow, with the ability to view and capture live video and photos. The sleek design is both attractive and functional, and can be used with our most popular table stands, boom stands, and articulating arms. Best of all, the microscopes use a modular design with multiple magnification and illumination options so you can customize them to suit your needs.

USB and Wi-Fi Connectivity

This hybrid model has the flexibility to connect to your computer using USB or wi-fi. Our professional microscopy software allows you to view and capture live video and photos on your computer at 1080p HD resolution up to 50fps. Exposure and color-adjustments are made through the software's comprehensive user interface. Use the expansive set of measurement and notation tools to compliment your workflow, or the real-time stitching and focus-stacking functions to capture incredibly detailed images.

When connected directly to your computer through USB, all of the necessary power is provided by this connection. When using wi-fi, the USB connection simply provides power, whether from an AC outlet or a portable power source. The microscope will generate a WLAN network to which you can connect over wi-fi from a computer or mobile device. Mobile users can download the handy mobile app for iOS and Android, which allows you to view live video on your phone or tablet, and capture photos while you work.

Modular Optics

The amazing utility of this microscope begins with its optics. At its core is a 0.7X-5.6X continuous optical zoom. This allows you to quickly adjust the level of detail as needed. By default, the microscope is equipped with a 1X objective lens with a considerable 80mm working distance. A range of additional objective lenses are available to cover different magnifications and working distances. For even greater flexibility, an RMS lens adapter is also available to mount traditional microscope objective lenses.

Out of the box, the DM0756 provides 0.7X-5.6X optical magnification using the 1X objective lens. The objective lens can be replaced by one of several optional lenses ranging in magnification from 0.5X to 2X. This will decrease or increase the overall magnification range, as well as changing the working distance between the microscope and the subject.

Illumination

The microscope is equipped with an LED ring-light for cool, even illumination. Since the illuminator is attached to the microscope, the light will always be where you need it. 60 individual LEDs blanket the subject with light, daylight-balanced at 6500K for ideal imaging. Following the theme of modularity, the ring-light uses magnetic coupling so it can be effortlessly removed or attached as needed.

Multi-Function Switch

To simplify your workflow, the microscope has a multi-function switch which can be used to control the brightness of the ring light, as well as to capture images. Moving the switch to the left or right will adjust the ring light's brightness in stepped graduations. The switch also has a button action which will capture an image in the appropriate software.

Support Options

DM756 series microscopes are designed to be used with a range of support systems, including table stands, boom stands, and articulating stands. The microscope can be mounted in 50mm collars, or combined with the AD-SZ76 adapter to fit the 76mm collars used by our most popular stands.

Packing List:
