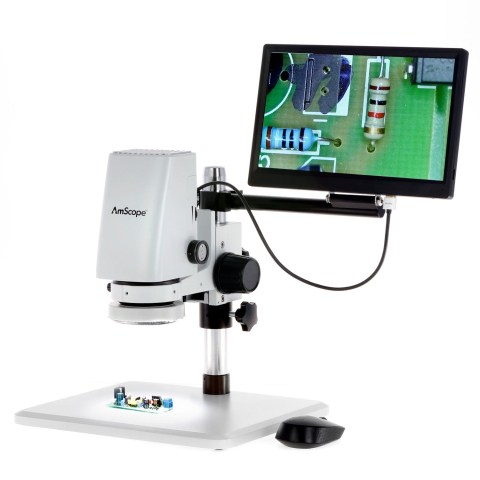

AmScope DM750-2MP-HDM11 DM750 Series Zoom Tabletop Video Inspection Digital Microscope System 0.7X-5X Magnification on Pillar Stand w/ 11.6" Monitor

AmScope DM750 Series Zoom Tabletop Video Inspection Digital Microscope System 0.7X-5X Magnification on Pillar Stand with 11.6" Monitor

Features:

• An all-in-one digital inspection system for industrial and laboratory use, complete with high-definition imaging, a large 11.6" screen, and a 144-LED ring light
• 0.7X-5X zoom magnification is ideal for dissection, soldering, and general inspection, and detents at key magnifications ensure ease and consistency
• Real-time, high-definition images are displayed on the 11.6" screen with superb clarity and accurate colors
• The large base provides stability as well as an ample work surface, while symmetrical focusing knobs provide a large travel range to suit various objects
• A 144-LED ring-light can be quickly attached or detached as needed, and illuminates subjects with low-heat, daylight-balanced light

The DM750-2MP-HDM11 is a complete video-inspection system for use in industrial environments, laboratories, and classrooms. It combines high-quality zoom optics with 1080p digital imaging capable of capturing photos and videos while you work. This tabletop system includes an 11.6" HD monitor for viewing live video and using the on-screen controls and measurement tools. Bright, even illumination is provided by a 144-LED ring light with adjustable intensity. The system simplifies the inspection process, making it ideal for machine shops, PCB assembly, and general quality control.

Zoom Optics

The zoom objective lens provides 0.7X to 5X optical magnification to cover a wide range of subjects and is ideally suited for dissection, soldering, and machining. Using a single objective eliminates the inconsistent focus and distortion caused by lens tilt seen with stereo microscopes. Key magnifications in the zoom range have a detent for improved repeatability, especially when performing measurements.

Tabletop Stand

The included table stand provides essential stability with a small footprint. The pillar-type stand allows the focusing block to swing laterally for flexible coverage. The focusing block can be raised and lowered freely for coarse adjustments, while symmetrical focusing knobs with adjustable tension provide precision adjustment. Since the microscope uses the same 76mm mount as our bestselling stereo microscopes, it can be used with a wide range of different support systems including boom arms and articulating arms.

High Definition 11.6" Monitor

The 11.6" monitor attaches to the table stand's pillar using a mounting arm which places the monitor conveniently next to the microscope. The screen uses IPS technology to produce accurate colors when viewed from virtually any angle. Using HDMI, the 1080p video is crisp and lag-free.

Illumination

A clip-on 144-LED ring light can be detached or attached to the head as needed, providing bright, even, low-heat illumination.
