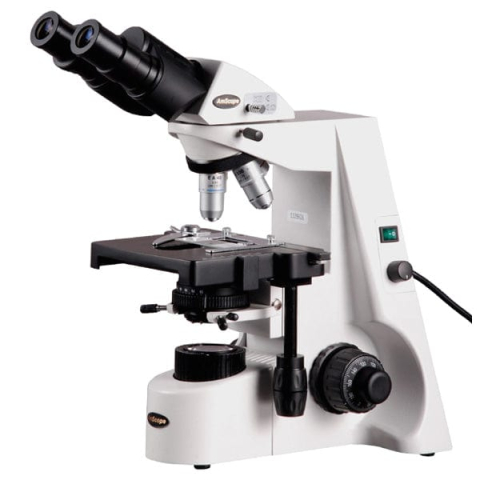

AmScope B660C 40X-2500X Professional Binocular Compound Microscope w Kohler Illumination

40X-2500X Professional Binocular Compound Microscope w Kohler Illumination

Key Features:

• Superior optical system offering crisp clear sharp images
• 40x-2500x eight extreme widefield magnification settings
• Backward nosepiece provides spacious operation space for comfortable observation
• Kohler halogen illumination with condenser & iris
• Wide band (85V-230V) power supply

This is a brand new professional binocular compound microscope with superior extreme widefield optical system, offering crisp clear images. It comes with a 30 degree inclined 360 degree swiveling binocular Siedentopf head, extreme widefield optics, coaxial coarse & fine focusing, 3-D mechanical stage, and Kohler halogen illumination with wide band power supply (from 85V to 230V). The backward nosepiece configuration allows spacious room for convenient operation and comfortable observation. This microscope provides six levels of magnification: 40X, 100X, 250X, 400X, 1000X and 2500X. It is a superb instrument for clinic offices, veterinary labs and research laboratories.

Features:

• An Affordable Optical Microscopy System with Kohler Illumination!
• Backward Nosepiece Allowing Spacious Room for Comfortable Observation
• Large Mechanical Stage with Two-microslide Specimen Clamp
• Humanized Configuration Design Providing Comfortable Operation
• Front Open Light house Framework for Easy Access to Light Bulb
• Fully Coated Optical System with High Resolution
• Crystal Clear Sharp Images
• Precise Mechanical Control System
• Backward Nosepiece Design for Spacious Operation Room
• Kohler Illumination System with Field Diaphragm for Lighting Control
• 30 Degree Inclined, 360 Degree Swiveling, Binocular Siedentopf Head
• Six Magnification Levels: 40X, 100X, 250X, 400X, 1000X and 2500X
• Intensity-Variable Transmitted Halogen Lighting System
• Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
• Rack and Pinion Adjustment for Condenser
• Low Position Coaxial Stage Movement Control Knobs
• Dual Side Coaxial Coarse and Fine Focusing Control
• Adjustable Interpupillary Distance
• Adjustable Diopter on Ocular
• Durable Cast Alloy Frame Stand with Stain Resistant Enamel Finish
• Four Objectives: 4X, 10X, 40X, 100X
• Two Sets of Wide Field Eyepieces: Wide Field 10X (22mm Field of View) and 25X
• Large Double Layer Mechanical Stage with Stain Resistant Finish
• Upward Stage Stopper to Protect Objectives and Slides
• Compatible with a Wide Range of Optional Accessories, Including Phase Contrast and Darkfield Condensers
• Manufactured under ISO 9001 Quality Control Standards
• Excellent Five (5) Year Factory Warranty

Specifications:

• Optical System: corrected
• Nosepiece: backward, ball bearing quadruple
• Head: Siedentopf binocular head, 30-degree inclined
• Eyepiece: WH10X/22mm and WH25X
• Objectives: objective 4X, 10X, 40X (spring), 100X (spring, oil)
• Focusing: low position coaxial focus system
• Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Stage: 7.1"x5.9" (180mm ? 150mm)
• Stage Traveling Range: 3"x 2" (75x50mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Condenser: N.A. 1.25, swing with iris diaphragm filter
• Illumination: Kohler, halogen 12V/20W
• Power Supply: 85V-230V wide voltage, CE certified

Packing List:

• One Binocular Siedentopf Head
• One Microscope Body Frame with Base and Kohler Illumination System
• Four High Quality Objectives: 4X, 10X, 40X and 100X
• Two Pairs of Extreme Widefield Eyepieces: WH10X and WH25X
• One Power Cord
• Three Color Filters
• One Dust Cover
• One Spare Halogen Bulb
• One Spare Fuse
• Immersion Oil
• User's Manual Download
• Shipping Weight: 25 lbs
