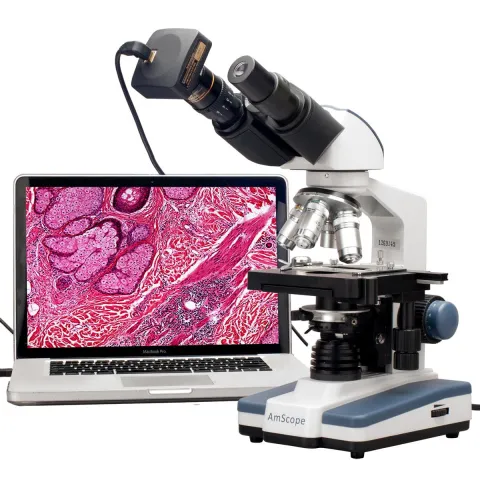

AmScope B120B-P B120 Series Binocular Compound Microscope 40X-2000X Magnification with LED, Siedentopf Head, Digital Camera and 3D Stage

AmScope B120 Series Binocular Compound Microscope 40X-2000X Magnification with LED, Siedentopf Head, Digital Camera and 3D Stage

• Eight widefield magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X
• Professional 30 degree inclined 360 degree swiveling Siedentopf binocular head
• Sturdy framework with 3-D double layer mechanical stage, coaxial coarse & fine focusing, Abbe condenser, iris diaphragm and color filter
• Powerful single bulb LED illumination with dimmer
• Digital camera with advanced editing, processing & measuring software for Windows XP/Vista/7/8/10

Our new binocular digital compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for a range of people from students in high school to teachers including those with a major in biology, or enrolled in medical school. It comes with a professional Siedentopf binocular head, double layer mechanical stage, course & fine focusing, LED illumination, and a 640x480 pixel detachable digital camera. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Microscope Features :

• 30 degree inclined 360 degree swiveling Siedentopf binocular head
• High quality precise optical glass elements
• Eight magnification settings, 40X-80X-100X-200X-400X-800X-1000X-2000X
• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
• Two pairs of widefield eyepieces: WF10X and WF20X
• Adjustable interpupillary distance
• Adjustable ocular diopter
• Variable intensity illumination
• Coaxial coarse and fine focus adjustment
• Focusing knobs are on both sides of the microscope
• Stage upward moving lock protects objectives and slides
• Stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm & filters
• Rack and pinion adjustment condenser
• Manufactured Under ISO 9001 Quality Control Standard.
• Excellent Five (5) Year Factory Warranty

Specifications :

• Eyepieces: widefield, WF10X and WF20X
• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Head: 30 degree inclined 360 degree swiveling binocular
• Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
• Adjustable ocular diopter
• Nosepiece: revolving quadruple
• Mechanical Stage: 3-D double layer
• Size: 4-5/8" x 5" (118mm x 127mm)
• - Travel Range (X-Y): 70mm x 21mm
• Condenser: NA1.25 Abbe condenser with iris diaphragm
• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
• Focusing: coaxial coarse & fine knobs on both sides
• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
• Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm0

Camera Specifications:

• Sensor: Aptina MT9V011
• Sensor Type: CMOS
• Sensor Size: 3.58x2.69mm
• Pixel Size: 5.6
• Resolution: 0.3MP
• Frame Rate: 30@640x480, 80@320x240
• Sensitivity: 1.9V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

• One Siedentopf Binocular Microscope Head
• One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
• Four DIN Standard Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 20X Eyepieces
• One Blue Color Filter
• One Dust Cover
• Sample Immersion Oil
• User's Manual Download
• One 0.3MP USB2.0 Digital Camera with Reduction Lens
• One 6' (1.8m) USB Cable
• Shipping weight: 14 lbs
