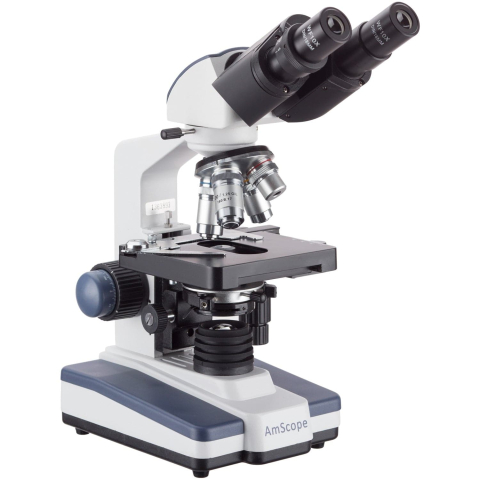

AmScope B120 Series Student & Professional LED Binocular Compound Microscope 40X-1000X Magnification with 3D Two-Layer Mechanical Stage

  • 40X to 1000X magnification range using high-quality, color-coded objective lenses, and 10X eyepieces for four unique settings ideal for viewing cellular structures and microorganisms.
  • An economical microscope for students and professionals, the B120 packs high-quality optics and refined mechanics into a compact form.
  • The 120 series offers a compliment of optional accessories to expand the functionality, such as darkfield and phase-contrast kits
  • The Siedentopf binocular head has a comfortable 30° incline, can be rotated 360°, and provides interpupillary and dioptric adjustments to suit any user.
  • Students and professionals alike will appreciate the 3-axis mechanical stage with low-position controls, and the coaxial coarse and fine focus for their ergonomics and efficiency.
  • The bright, daylight-balanced LED illumination uses our specialized fly-eye lens for improved uniformity and contrast, and the centerable condenser assures proper alignment.

The B120 binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is an ideal microscope for teachers and students, including those in medical school or with a major in biology. It has a number of advancements in functionality compared to other microscopes in its class, such as enhanced LED lighting, centerable condenser, and Siedentopf head adjustments. Use the microscope for studying fixed or live cells, bacteria, plants and soil, or water samples.

Viewing Head

AmScope-B120

To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. Various eyepieces can be used to increase the overall optical magnification.



Optics

AmScope-B120

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy. Optional eyepieces are available to modify the compound magnification, providing levels up to 2500X.



The Stage

AmScope-B120

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

Transmitted Illumination

The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. With our specially developed fly-eye lens, the light is evenly distributed at maximum brightness to improve contrast and resolution. Illumination is further enhanced by a centerable Abbe condenser, which can be realigned for any magnification to guarantee proper lighting.

Specifications

Optical SystemFinite-conjugate
Mechanical Tube Length160mm
HeadBinocular, 30° incline, 360° rotatable
Interpupillary AdjustmentSiedentopf, 53-77mm
Ocular Diameter23mm
Eyepieces10X
Objective LensesDIN standard
Objective Parfocal Distance45mm
Objective Mounting ThreadRMS 20.32mm
Objective Turretquadruple
Focusing SystemCoaxial coarse and fine focus
Focus Range30mm
Division of Fine Focus0.002mm
Stage DesignDouble-layer with caliper
Stage Dimensions118mm x 127mm
X-Y Translation Range70mm x 21mm
Transmitted IlluminationVariable-intensity 1W LED, fly-eye lens
CondenserNA1.25 Abbe condenser with iris diaphragm
Sub-stage Condenser-holderrack and pinion, centerable
Power100-240VAC 50/60Hz wide-band
Dimensions11" x 7" x 13-3/4" (28cm x 17.8cm x 35cm)

Objective Lenses

MagnificationCorrectionsNAImmersion MediumCover-glass Thickness
4Xachromatic0.10-0.17mm
10Xachromatic0.25-0.17mm
40Xachromatic0.65-0.17mm
100Xachromatic1.25oil0.17mm

Packing List:

  • One binocular microscope head
  • One microscope body
  • Four objective lenses: 4X, 10X, 40X, 100X
  • One pair 10X eyepieces
  • One blue color filter
  • One dust cover
  • One sample immersion oil
