AmScope B100-M B100 Series Biological Binocular Compound Microscope 40X-1000X Magnification with Halogen and 1.3MP Camera

AmScope B100 Series Biological Binocular Compound Microscope 40X-1000X Magnification with Halogen and 1.3MP Camera

• 40X-1000X Four widefield magnification settings
• Binocular sliding head, Abbe condenser with iris diaphragm
• Sturdy metal framework with separate coarse & fine focus
• 1.3MP USB 2.0 digital camera for photos and videos on Windows, Mac, and Linux
• Advanced software for Windows XP/Vista/7/8/10, limited software for Mac/Linux

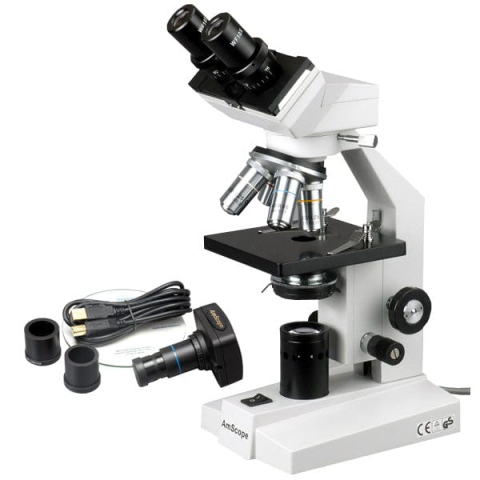

This is a binocular compound microscope with 1.3MP high quality USB2.0 digital camera. The microscope comes with four magnification settings (40X, 100X, 400X & 1000X), coarse & fine focus, and electrical illumination system. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscopy system is an ideal instrument for teaching demonstration and biological, bacteriological & pharmaceutical applications.

• 45-degree Inclined 360-degree Swiveling Sliding Binocular Head
• Large Stage with Stain Resistant Finish
• Separate Coarse Fine Focusing
• Fully Coated Optical System with High Resolution
• Crystal Clear Sharp Images
• High Quality Professional Grade Microscope
• Great for Clinics, Vets, Doctors, or Students
• Four Levels of Magnification: 40X, 100X, 400X & 1000X
• Upward Stage Stopper to Protect Slides and Objectives
• Abbe Condenser with Iris Diaphragm Filters
• Built-In Illumination System
• Focusing Control Knobs on Both Sides
• Four DIN Achromatic Objectives
• Full Optical Glass Elements
• All Metal Mechanical Components
• Precise Ground Glass Lenses
• Adjustable Interpupillary Distance
• Adjustable Diopter on Ocular
• Solid Metal Frame Construction with Stain Resistant Enamel Finish
• Spare Bulb, Fuse and a Bottle of Immersion Oil Included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty
Specifications :
• Nosepiece: quadruple
• Head: 45-degree inclined sliding binocular
• Interpupillary Distance: 2-3/16" - 3-0" (55 - 75mm)
• Wide-field Eyepiece: WF10X/18
• Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring,oil)
• Stage Dimensions: 4-5/16"x 4-3/4" (110x120mm)
• Abbe Condenser: NA=1.25 with iris diaphragm filter
• Illumination: 20W tungsten bulb
• Power Supply: 110V
Camera Specifications:
• Sensor: Aptina MT9M111
• Sensor Type: CMOS
• Sensor Size: 4.6x3.7mm
• Pixel Size: 3.6
• Resolution: 1.3MP
• Frame Rate: 15@1280x1024, 26@640x512, 50@320x256
• Sensitivity: 1.0V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Specifications:
• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Packing List :
• One Binocular Microscope Head
• One Microscope Body with Illumination System
• Four Achromatic DIN objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield WF10X Eyepieces
• One Spare Tungsten Bulb
• Color Filters
• Pair of Clips
• Dust Cover
• Power Cord
• Immersion Oil
• User's Manual Download
• One 1.3MP USB2.0 Digital Camera with Reduction Lens
• One 6' (1.8m) USB Cable
• Two Adapters
• Shipping Weight: 12 lbs
For ages 12+
