AmScope AL050-DM756 Objective Lenses for DM756 and H756 Microscopes

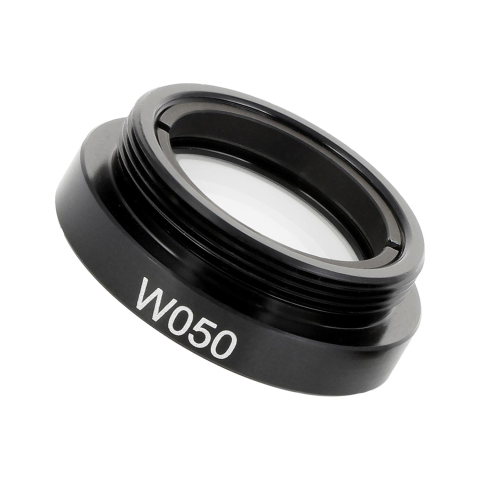

AmScope 0.5X Objective Lens for DM756 Digital Microscopes

• Attaches to the DM756 microscope to modify its built-in zoom magnification by a factor of 0.5X
• Decreases the magnification range to 0.35X-2.8X
• Increases the working distance to 165mm to provide more room for hand-on work
• Doubles the field-of-view, making it ideal for larger objects

The AL-DM756 series lenses are designed specifically for our DM756 digital microscopes. The modular design of the microscope allows for various objective lenses to be used to suit changing magnification requirements. Lower magnifications will benefit larger subjects which require a greater field-of-view, while higher magnifications provide improved detail of smaller subjects. While the microscope's standard 0.7X-5.6X magnification range is optimal for covering common use-cases, these lenses offer the flexibility to expand the coverage when needed.

The AL050-DM756 lens attaches to the microscope to modify its built-in zoom magnification by a factor of 0.5X. This means the optical magnification range becomes 0.35X-2.8X. Additionally, the working distance increases from 80mm to 165mm, providing more room for hands-on work. By doubling the field-of-view, this lens is ideal for larger objects.

AL-DM756 Objective Lenses
