Overview

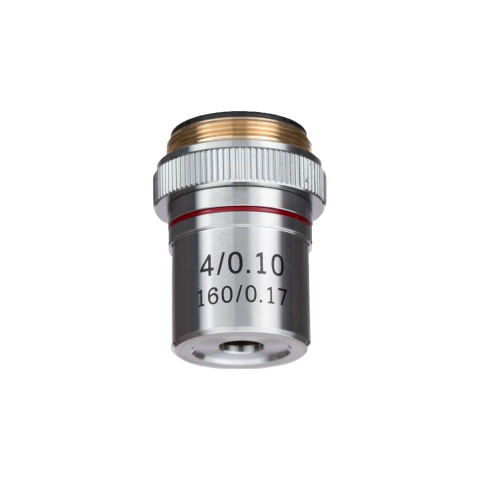

AmScope 4X Achromatic Microscope Objective
- 4X Achromatic microscope objective lens fits DIN-standard compound microscopes
- 4X Magnification Power
- Achromatic Objective Lens
- DIN Standard
- 20mm Mounting Thread (in diameter)
This is a 4X achromatic objective lens for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
| Compatibility | |
| Optical System | Finite |
| Mechanical Tube Length | 160mm |
| Mounting Thread | RMS 20.32mm |
| Parfocal Distance | 45mm |
| Lens Specifications | |
| Magnification | 4X |
| Numerical Aperture | 0.10 |
| Corrections | Achromatic |
| Cover-glass Thickness | 0.17mm |
| Nosecone | Fixed |
| Immersion Medium | None |
