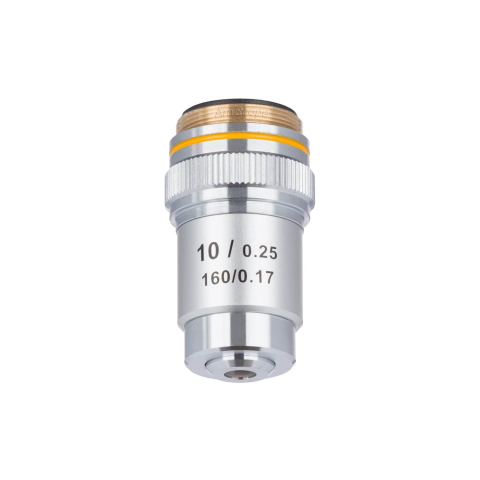

AmScope 10X Achromatic Microscope Objective for Compound Microscopes
- This is a 10X Achromatic microscope objective lens with high quality
- 10X Magnification Power
- Achromatic Objective Lens
- DIN Standard
- 20mm Mounting Thread (in diameter)
This is a 10X achromatic objective lens for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
| Compatibility |
|
| Optical System | Finite |
|
| Mechanical Tube Length | 160mm |
|
| Mounting Thread | RMS 20.32mm |
|
| Parfocal Distance | 45mm |
|
| Lens Specifications |
|
| Magnification | 10X |
|
| Numerical Aperture | 0.25 |
|
| Corrections | Achromatic |
|
| Cover-glass Thickness | 0.17mm |
|
| Nosecone | Fixed |
|
| Immersion Medium | None |
|
| Working Distance | 6.56mm |
|
