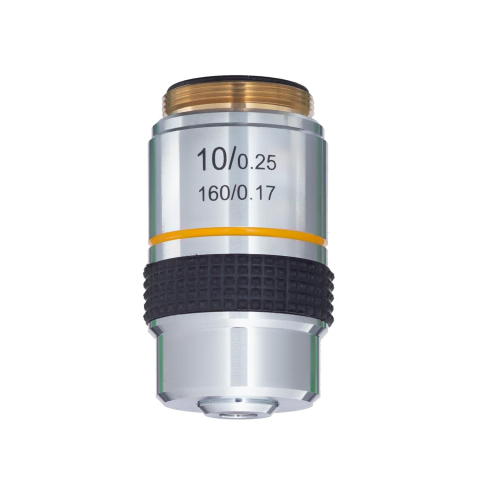

AmScope 10X Achromatic Objective Lens for Compound Microscopes
- This is a DIN-standard 10X objective lens for compound microscopes.
- The mounting thread is 20.32mm RMS, and the parfocal distance is 45mm.
- It features achromatic correction for sharp images.
This is a 10X achromatic objective lens for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
| Compatibility |
|
| Optical System | Finite |
|
| Mechanical Tube Length | 160mm |
|
| Mounting Thread | RMS 20.32mm |
|
| Parfocal Distance | 45mm |
|
| Lens Specifications |
|
| Magnification | 10X |
|
| Numerical Aperture | 0.25 |
|
| Corrections | Achromatic |
|
| Cover-glass Thickness | 0.17mm |
|
| Nosecone | Fixed |
|
| Immersion Medium | None |
|
