Overview

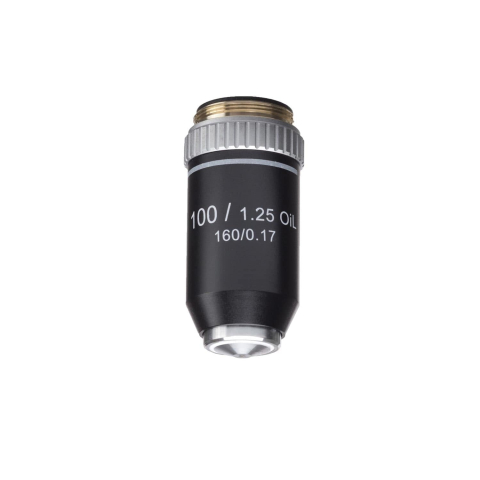

AmScope 100X Achromatic Microscope Oil Immersion Objective with Black Finish
- This brand new black 100X Achromatic microscope oil immersion objective lens fits DIN-standard compound microscopes
- 100X Magnification Power
- Achromatic Objective Lens
- DIN Standard
- 20mm Mounting Thread (in diameter)
This is a 100X achromatic oil-immersion objective lens with black finish for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
| Compatibility | |
| Optical System | Finite |
| Mechanical Tube Length | 160mm |
| Mounting Thread | RMS 20.32mm |
| Parfocal Distance | 45mm |
| Lens Specifications | |
| Magnification | 100X |
| Numerical Aperture | 1.25 |
| Corrections | Achromatic |
| Cover-glass Thickness | 0.17mm |
| Nosecone | Spring |
| Immersion Medium | Oil |
