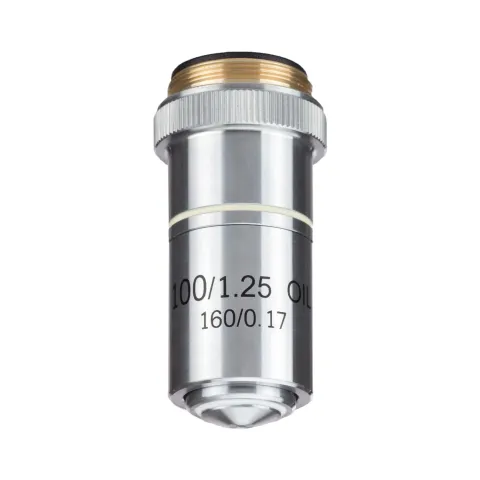

AmScope 100X Achromatic Microscope Oil Immersion Objective
- 100X Achromatic microscope oil immersion objective lens fits common size DIN-standard compound microscopes
- 100X Magnification Power
- Achromatic Objective Lens
- 20mm Mounting Thread (in diameter)
A 100X achromatic objective lens for use with DIN-standard microscopes. The lens is designed for 160mm finite-tubelength compound microscopes with 20.32 RMS objective threading. The 100X objective has a numerical aperture of 1.25, and must be used with immersion oil.
| Compatibility |
|
| Optical System | Finite |
|
| Mechanical Tube Length | 160mm |
|
| Mounting Thread | RMS 20.32mm |
|
| Parfocal Distance | 45mm |
|
| Lens Specifications |
|
| Magnification | 100X |
|
| Numerical Aperture | 1.25 |
|
| Corrections | Achromatic |
|
| Cover-glass Thickness | 0.17mm |
|
| Nosecone | Spring |
|
| Immersion Medium | Oil |
|
|
|
