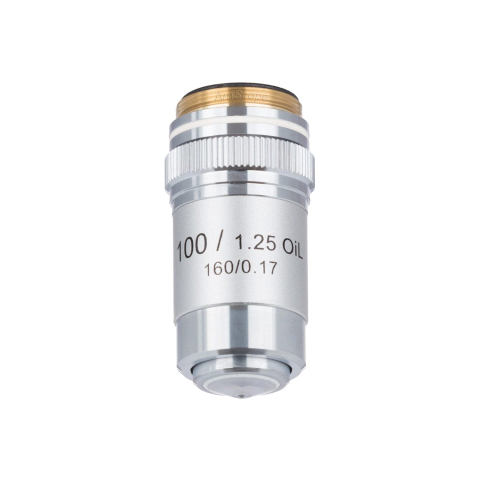

AmScope 100X (Oil) Achromatic Microscope Objective for Compound Microscopes
- This brand new 100X (spring, oil) Achromatic microscope objective lens fits DIN standard compound microscopes
- 100X Magnification Power
- DIN Standard Achromatic Objective Lens
- Spring Oil
- 20mm Mounting Thread (in diameter)
This is a 100X achromatic oil-immersion objective lens for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
| Compatibility |
|
| Optical System | Finite |
|
| Mechanical Tube Length | 160mm |
|
| Mounting Thread | RMS 20.32mm |
|
| Parfocal Distance | 45mm |
|
| Lens Specifications |
|
| Magnification | 100X |
|
| Numerical Aperture | 1.25 |
|
| Corrections | Achromatic |
|
| Cover-glass Thickness | 0.17mm |
|
| Nosecone | Spring |
|
| Immersion Medium | Oil |
|
| Working Distance | 0.36mm |
|
|
