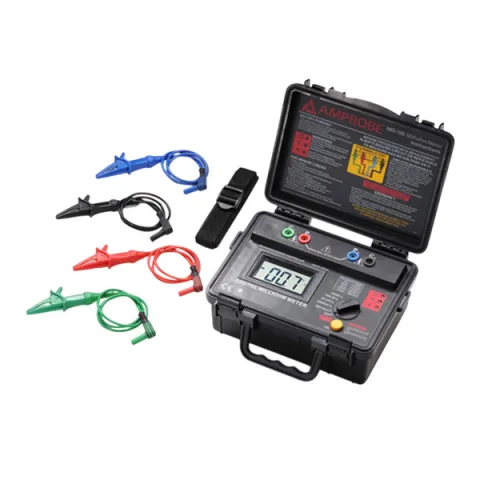

Amprobe MO-100 Milliohm Meter Digital LCD Display 2000 MOhm

Diagnose potential failure with the MO-100, portable battery powered milliohm meter. Quickly check windings opens or shorts in motors, generators and transformers, wire-to-wire connection resistances, heating elements testing and contact resistance in critical electrical connections.

Features:

• Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation
• Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100µ Ohm
• Measurement precision with three test currents with over-temperature protection
• Protection against inadvertent connection to overvoltage
• Large LCD
• Potential lead resistance, current lead resistance checks
• Auto-hold and auto-off features
• Lightweight, robust compact.
• Indicates measurement errors due to temperature or connection problems
• O-Ring sealed enclosure
• Battery powered
• IEC / EN 61010-1

Package includes:

• MO-100
• Test leads
• Shoulder belt
• 8 x 1.5 V (AA) batteries
