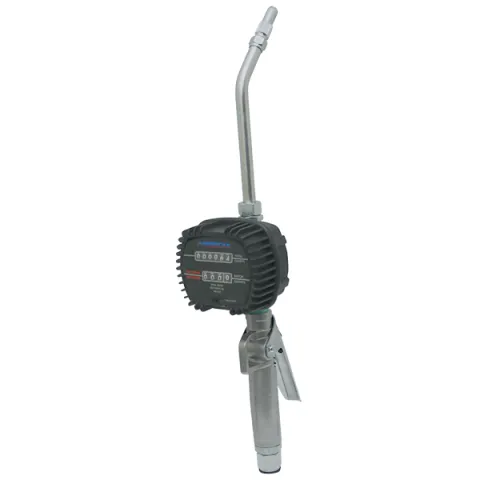

American Lube TIM-651-RM Mechanical Metered Control Handle with Rigid Extension & Manual High-Flow Non-Drip Tip

Pro Series Standard Control Handle

Metered units in quarts, totalizer units in quarts, 4.0 GPM working flow

SUPERIOR DESIGN Enables the use of manual non-drip tips DURABLE No exposed pointers to break or turn backwards

MODULAR ASSEMBLY Swivel, control valve, meter and tip assembly are separate units which simplifies repair

SELF-POWERED Eliminates the headaches associated with dead batteries

SHOCK-RESISTANT Rugged shock-resistant design stands up to the harshest environments. Meter bodies are equipped with a soft rubber shock-guard for added protection

FILTER All Pro Series mechanical control valves have built-in filters for added protection

COMPATIBILITY:

• Automatic Transmission Fluid
•  Gear Oil
•  Hydraulic Oil
•  Motor Oil
•  Synthetic Oil

 ACCURACY:

•  +/- 0.5%

WORKING FLOW RATE:

•  2.5 GPM (standard tips)
•  4 GPM (high flow tips)

THREADS:

•  Swivel: 1/2"-14 NPT (F). NOTE: Sealant required
•  Meter: 1/2"-14 NPT (F x F). NOTE: Sealant required. Do not over torque
