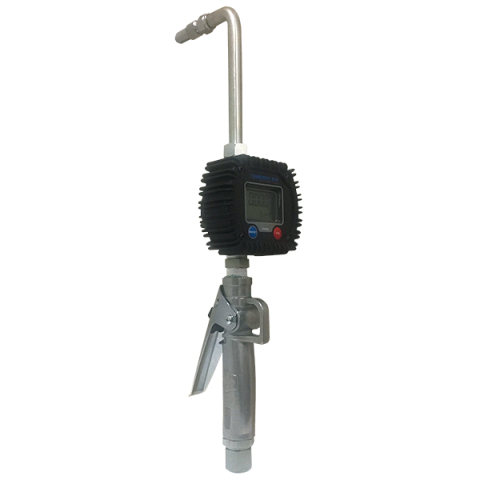

American Lube TIM-601-RMGO Digital Metered Control Handle for Oils or ATF with Rigid Extension & 90 Degree Manual Non-Drip Tip

Pro Series Standard Oil Control Handle

Measures in pints, quarts, liters, gallons, totalizer units in liters and gallons and 4.0 GPM working flow. 90° Rigid manual tip assembly with a tip diameter of 1/2".

EXCLUSIVE DESIGN This meter is built exclusively for American Lubrication Equipment Corporation incorporating numerous design ideas provided by their design team

FIELD REPAIRABLE This design enables the user to replace the circuit board while the meter is installed under pressure

SUPERIOR DESIGN Fluid is completely separated from the electronic head. The entire electronics head/puck is available as a replacement part

PROGRAMMABLE All Pro Series digital meters are programmable to Pints, Quarts, Liters and Gallons

BATTERIES New AAA battery design lasts up to 3 times longer

SHOCK-RESISTANT Rugged shock-resistant design stands up to the harshest environments. Meter covers have a molded-in soft rubber shock-guard for added protection

MODULAR ASSEMBLY Swivel, control valve, meter and tip assembly are separate units which simplifies repair

FILTER All Pro Series digital control valves have built-in filters for added protection

WORKING PRESSURE:

• 0 PSI (manual tip) or 35 PSI (automatic tip) minimum
• 1,000 PSI maximum

COMPATIBILITY:

• Automatic Transmission Fluid
•  Gear Oil
•  Hydraulic Oil
•  Motor Oil
•  Synthetic Oil

 ACCURACY:

•  +/- 0.5% WORKING FLOW RATE:
•  2.5 GPM (standard tips)
•  4 GPM (high flow tips)

THREADS:

•  Swivel: 1/2"-14 NPT (F). NOTE: Sealant required
•  Meter: 1/2"-14 NPT (F x F). NOTE: Sealant required. Do not over torque
