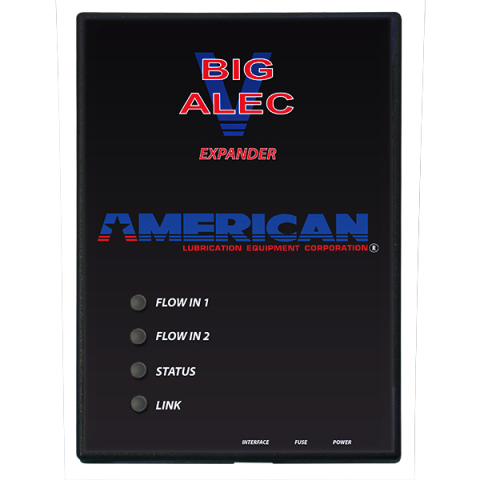

Expander Box for BIG ALEC V One-Product Fluid Inventory Control System
Connected to Expander via 14' CAT 5 Cable. Expander includes Power (24VAC), USB, Serial ports. Fuse 3SB 2A 250V.
Box interfaces with fluid solenoids, air solenoids, pulse meters.
NOTE: Touchscreen provides 24VAC power to Box if CAT5 cable length is less than 50. Box requires its own 110/24 VAC Powerpack p if CAT5 cable length is greater than 50 feet.
