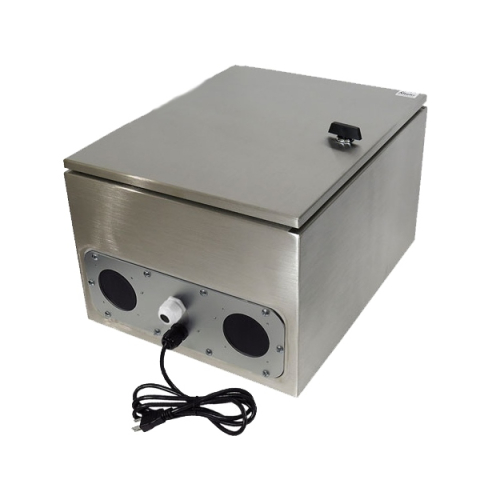

Altelix NX201612VFA1C NX Series 20x16x12 Stainless Steel Weatherproof NEMA Enclosure with Dual Cooling Fans 120 VAC Outlets and Power Cord

The Altelix NX201612VFA1C Stainless Steel Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

Construction and Features

This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) AISI stainless steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and a quarter-turn latch to secure the enclosure. Internal grounding studs are provided on both the door and enclosure. Both the enclosure and door are feature a brushed natural finish.

Bonus Aluminum Bottle Opener Key

This enclosure now includes HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

Removable Power and Fan Module

The NX201612VFA1C features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features a pre-wired duplex 120VAC power outlet and a pre-wired 5 foot power cord, so no additional wiring is required.

Dual Cooling Fans Ventilation

This enclosure features dual 3" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them available for internal equipment use.

Galvanized Steel Equipment Plate

This configuration consists of the stainless steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting

Mounting holes are provided inside the enclosure for mounting to a wall or other structure.

Features:

• Dual Thermostat Controlled Cooling Fans
• (2) 120VAC Outlets
• Heavy Duty Continuous Seam Welded 18 Gauge 304L Stainless Steel Construction
• Brushed Natural Finish
• Includes Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
• Quarter-Turn Door Latch with Key
• Bonus Aluminum Bottle Opener Key Now Included!
• NEMA Type 3R, 3RX / IP24 Rated

Applications:

• Indoor / Outdoor Electrical and Electronic Equipment
• Industrial Controls and Components
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection of Equipment from Theft or Damage
• Agriculture Processing Facilities
• Mining Operations and Refineries
• Food Processing Facilities
• Commercial Kitchens
