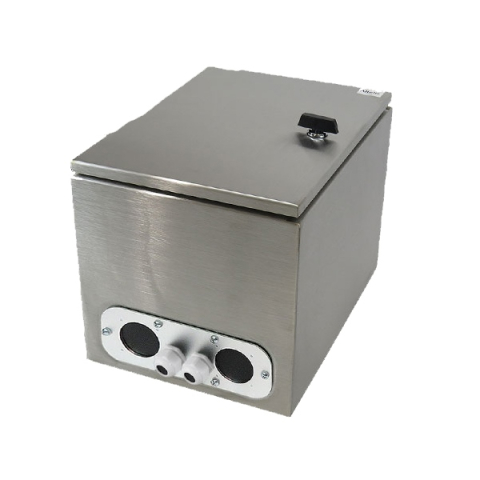

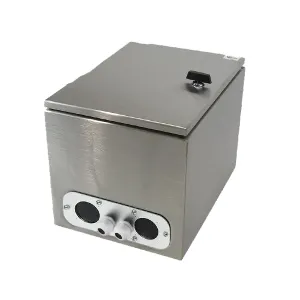

Altelix NX161212VP NX Series 16x12x12 Vented Stainless Steel Weatherproof NEMA Enclosure with Steel Equipment Mounting Plate

The Altelix NX161212VP Vented Stainless Steel Weatherproof NEMA Enclosure with Galvanized Steel Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

Construction and Features

This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) AISI 304L stainless steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and a quarter-turn latch to secure the enclosure. Internal grounding studs are provided on both the door and enclosure. Both the enclosure and door feature a brushed natural finish.

Bonus Aluminum Bottle Opener Key

This enclosure now includes HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

Removable Access Panel with Ventilation

The NX161212VP features a removable access panel that attaches to the bottom of the enclosure. Constructed of rugged aluminum it features two 2" vents to help expel heat from within the enclosure. Weatherproof cable glands are provided on the panel for cable entry into the enclosure.

Galvanized Steel Equipment Plate

This configuration consists of the stainless steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Cable Glands

The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

Mounting holes are provided in the rear of the enclosure for mounting to a wall or other structure.

Features:

• Dual 3" Vents to Help Expel Heat
• Removable Access Panel with Cable Glands
• Heavy Duty Continuous Seam Welded 18 Gauge 304L Stainless Steel Construction
• Brushed Natural Finish
• Includes Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
• Quarter-Turn Door Latch with Key
• Bonus Aluminum Bottle Opener Key Now Included!
• NEMA Type 3R, 3RX / IP24 Rated

Applications:

• Indoor / Outdoor Electrical and Electronic Equipment
• Industrial Controls and Components
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection of Equipment from Theft or Damage
• Agriculture Processing Facilities
• Mining Operations and Refineries
• Food Processing Facilities
• Commercial Kitchens
