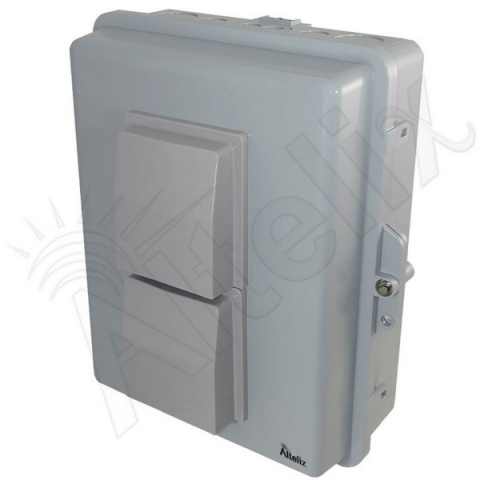

Altelix NP14GYVM-UBQ-04 NP14 Series Gray Vented Weatherproof Enclosure for Ubiquiti UniFi UAP-AC-PRO Access Point

The Altelix Vented UAP-AC-PRO Enclosure is a weatherproof enclosure designed to provide indoor or outdoor protection for the Ubiquiti Unifi® UAP-AC-PRO access point. This non-powered enclosure is ideal for installations powering the Ubiquiti Unifi® UAP-AC-PRO via PoE only.

Install Your UAP-AC-PRO Access Point Securely Outdoors

This sleek enclosure is molded from weatherproof UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS, for extreme durability. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. The wall mounting screws are concealed securely within the enclosure to prevent tampering. There is also a provision for a padlock. Two 3" inch air vents with rain shields and screens provide ventilation for the Ubiquiti Unifi® UAP-AC-PRO. This enclosure meets or exceeds NEMA 3R, 3RX and IP24.

Easy Setup

The equipment mounting plate of the NP14VM-UBQ-04 is pre-drilled to except the mounting bracket that comes with the Ubiquiti UniFi® UAP-AC-PRO. Simply attach the mounting bracket to the plate and then install the access point. Once the UAP-AC-PRO is securely mounted inside the enclosure, a special cable gland on the enclosure will allow a terminated Ethernet cable to be connected to the access point. If for any reason the access point needs to be removed, a handy removal tool is included with the enclosure which disengages the access point from the mounting bracket. This removal tool mounts to the plate so it is always available for use.

RF Transparent Design

The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.

Mounting

The NP14VM-UBQ-04 enclosure can be wall mounted using the included wall anchors.

Features:

• Designed to fit the Ubiquiti Unifi® UAP-AC-PRO Access Point
• Two 3" vents with rain shields and screens
• ABS + Polycarbonate Enclosure
• Gasketed Lid with Tamper-Proof Locking Screw
• Dual Door Latches
• RF transparent design will not affect wireless signal range or coverage pattern
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Access Point Removal Tool, Wall Mount Hardware and Cable Grommets

Applications:

• Outdoor Wireless Network Installations
• Protection of Access Point from Theft or Damage
• Concealment of Equipment
• Deployment of Hospitality Wireless Networks
• Retail and Commercial Wireless Networks
• PoE Installations
