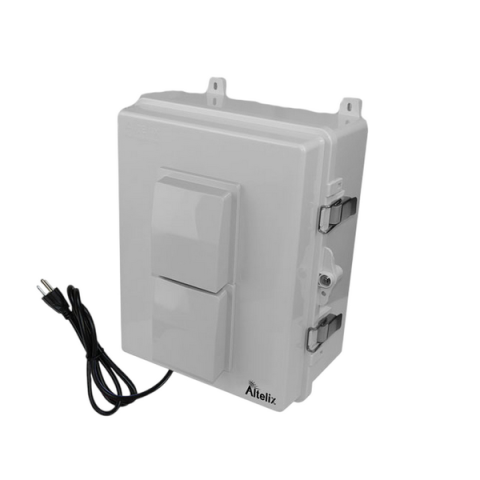

Altelix NP141107VPFA1R4C 14x11x7 Polycarbonate + ABS Vented Enclosure with Aluminum Mounting Plate Cooling Fan & 4 120 VAC Outlets & Power Cord

The Altelix NP141107VPFA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.

(4) 120VAC Power Outlets

This enclosure has (4) internal pre-wired 120VAC power outlets used to provide power to installed equipment. Mounted to the bottom of the enclosure they do not interfere with area used for installing equipment.

Cooling Fan Ventilation

The NP141107VPFA1C features dual vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.

Aluminum Equipment Mounting Plate

Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.

Secure Your Equipment

These NP series enclosures feature a gasketed lid with dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last

This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Complete with Cable Grommets and Wire Management Accessories

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Mounting Options

This enclosure features (4) external mounting feet which can be used for wall mounting or with the optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Features:

• New design provides better versatility and security!
• Thermostat controlled cooling fan to help expel heat
• Dual vents with rain shields and screens
• No electrical wiring required
• (4) internal pre-wired 120VAC power outlets
• Pre-wired 5 foot 3-prong power cord
• Features an aluminum equipment mounting plate
• Durable Polycarbonate + ABS construction
• Weatherproof and UV Stable
• Meets NEMA 3R, 3RX and IP24
• Gasketed lid with dual stainless steel latches
• Tamper-Proof locking screw with key and provision for padlock
• Can be mounted using external feet or internal mounting points
• RF transparent enclosure for wireless devices
• Multiple size knock-out holes on bottom of enclosure
• Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware

Applications:

• Indoor / Outdoor WiFi access points and routers
• Multi purpose utility box
• Home automation
• WiFi, LoRa and RFID gear
• Security and surveillance systems
• LED controllers
• IoT devices
• Network switches
• Media converters
• Cable TV and CCTV amplifiers
• Broadband equipment
• SCADA remote terminal
• Outdoor weather protection
• Protection against theft or damage
• Warehouses and public areas
• Concealment of equipment
