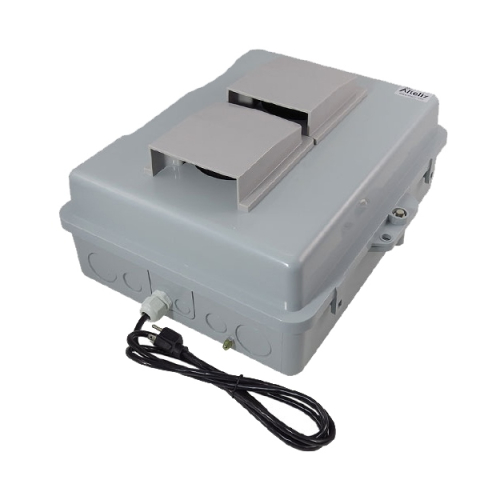

Altelix NP141105VA1C NP Series Gray 14x11x5 Polycarbonate + ABS Vented Weatherproof NEMA Enclosure with Aluminum Mounting Plate 120 VAC Outlets

The Altelix NP141105VA1C Vented Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability

These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Ventilation

This enclosure features two 3 inch air vents. Rain shields help prevent rain water from entering the enclosure.

Power

This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A ground lug is provided on the side of the enclosure. A cable grommet on the enclosure allows cables to be connected to internal devices. Knock-outs are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.

Aluminum Equipment Mounting Plate

The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting

The enclosure can be wall mounted using the included wall anchors.

Features:

• Dual 3" Vents with Rain Shields to Expel Heat
• ABS + Polycarbonate Enclosure
• Gasketed Lid with Tamper-Proof Locking Screw
• Dual Door Latches
• Includes Aluminum Mounting Plate with 120VAC Outlets
• Pre-wired 5 foot power cord
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Wall Mount Hardware and Cable Grommets

Applications:

• Indoor / Outdoor WiFi Equipment
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection of Equipment from Theft or Damage
• Concealment of Electronic Equipment
• Emergency Equipment
• Annunciators
• Public Safety Communications Equipment
