Altelix NMHX-500-16 Heavy Duty Stainless Steel Pole Mount Kit for NFC242009 & NS242012 Series NEMA Enclosures

The Altelix NMHX-500-16 Pole Mount Kit attaches to the rear of the Altelix NF162012, NFC242009 and NS242012 series NEMA enclosures. These heavy-duty stainless steel brackets allow the enclosures to be mounted to poles 1.7 to 16 inches (44.4 to 406.4mm) in diameter using the included heavy duty 304 stainless steel adjustable bands. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated.

Heavy-Duty Construction

The NMHX series pole mounts kits are designed for rugged all weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) galvanized steel. To mount to the pole this kit includes (2) heavy duty 19 gauge 304 stainless steel adjustable bands. 40% wider then standard adjustable bands, these 0.7 inch (18mm) wide bands feature a heavy-duty European worm gear design which is stronger than standard hose clamp gears.

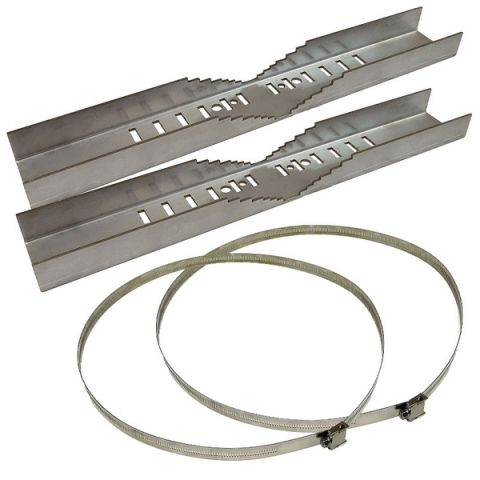

The NMHX-500-16 kit includes:

• (2) 14 gauge stainless steel mounting brackets
• (2) 304 stainless steel adjustable 16" diameter bands

The NMHX-500-16 is for use with the following enclosures:

• NF162012 Series FRP Enclosures
• NFC242009 Series FRP Enclosures
• NS242012 Series Steel Enclosures

Features:

• Includes (2) 14 Gauge Heavy-Duty Stainless Steel Mounting Brackets
• Includes (2) Heavy-Duty 304 Stainless Steel 16 inch Adjustable Bands for Mounting to Poles 1.7 to 16 inches (44.4 to 406.4mm) in Diameter
• Easily Attaches to Rear of Enclosure

Applications:

• Pole Mount Installations
• NF162012 Series
• NFC242009 Series
• NS242012 Series
