Altelix NMHS-600-16 Heavy Duty Pole Mount Kit for NFC322412 NS242412 NS242416 NS242424 NS282416 & NS322416 Series NEMA Enclosures

The Altelix NMHS-600-16 Pole Mount Kit attaches to the rear of NFC322412, NS242412, NS242416, NS242424, NS282412 and NS322416 series NEMA enclosures. These heavy-duty steel brackets allow the enclosures to be mounted to poles 1.7 to 16 inches (44.4 to 406.4mm) in diameter using the included heavy duty 304 stainless steel adjustable bands. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated.

Heavy-Duty Construction

The NMHS series pole mounts kits are designed for rugged all weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) steel and are coated for all weather applications. To mount to the pole this kit includes (2) heavy duty 19 gauge 304 stainless steel adjustable bands. 40% wider then standard adjustable bands, these 0.7 inch (18mm) wide bands feature a heavy-duty European worm gear design which is stronger than standard hose clamp gears.

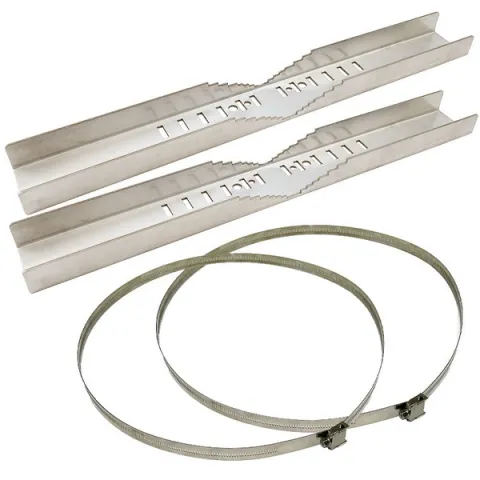

The NMHS-600-16 kit includes:

• (2) 14 gauge steel mounting brackets
• (2) 304 stainless steel adjustable 16" diameter bands

The NMHS-600-16 is for use with the following enclosures:

• NFC322412 Series FRP Enclosures
• NS242412 Series Steel Enclosures
• NS242416 Series Steel Enclosures
• NS242424 Series Steel Enclosures
• NS282416 Series Steel Enclosures
• NS322416 Series Steel Enclosures

Features:

• Includes (2) 14 Gauge Heavy-Duty Coated Steel Mounting Brackets
• Now Includes (2) Heavy-Duty 304 Stainless Steel 16 inch Adjustable Bands for Mounting to Poles 1.7 to 16 inches (44.4 to 406.4mm) in Diameter
• Easily Attaches to Rear of Enclosure

Applications:

• Pole Mount Installations
• NFC322412 Series
• NS242412 Series
• NS242416 Series
• NS242424 Series
• NS282416 Series
• NS322416 Series
