Altelix NMHS-400-T Enclosure Mounting Kit for Rohn 25G Towers - Universal Design for Small to Medium Size Enclosures

The Altelix NMHS-400-T mounting kit is designed for use with Rohn® 25G towers. Included U-bolts allow these brackets to be easily mounted to the Rohn® tower. These brackets can also be used with a single pole up to 1.3" (34.9mm) diameter using the included U-bolts.

This kit can also be used with Campbell® UT6 and UT10 towers as well as Amerite® AME 25 towers.

Universal Design

The NMHS-600-T brackets feature unique overlapping mounting slots for versatile mounting capabilities. This allows these brackets to be used with enclosures with mounting points up to 14.3" (365mm) apart. This allows these brackets to be used with a wider range of enclosures from small to large.

Heavy Duty Construction

These NMHS Rohn® tower mounting brackets are designed for rugged all-weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) galvanized steel and are ideal for all weather applications.

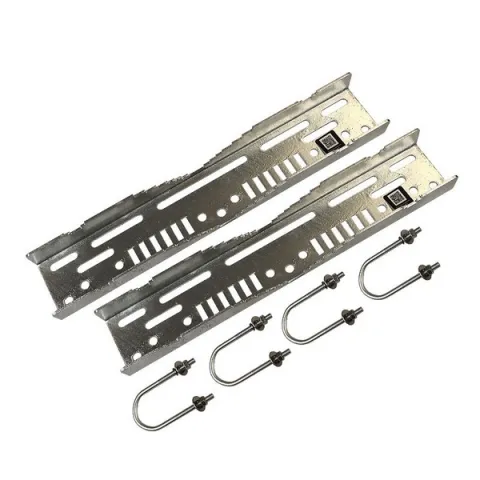

The NMHS-400-T kit includes:

• (2) 14 gauge galvanized steel Rohn® tower mounting brackets
• (4) Steel U-bolts with mounting hardware

The NMHS-400-T Rohn® tower mounting kit can also be used with the following Altelix enclosures:

• All NP Series Polycarbonate Enclosures
• NF100806 and NF100808 Series FRP Enclosures
• NF141206, NF141208, NF141210 and NF201612 Series FRP Enclosures
• NFC121006, NFC161208, NFC161608, NFC201608 and NFC241609 Series FRP Enclosures
• NS080806, NS100806, NS121006, NS161212, NS161608, NS201608, NS201612, NS241610 and NS241612 Series Painted Steel Enclosures
• NX161212, NX161608 and NX201612 Series Stainless Steel Enclosures

Features:

• Designed for use with Rohn® 25G towers, Campbell® UT6 and UT10 towers, Amerite® AME 25 towers
• Can be used with single 1.3" (34.9mm) diameter poles using include U-bolts
• Includes (2) 14 gauge heavy-duty galvanized steel mounting brackets and (4) steel U-bolts
• Overlapping mounting slots in bracket accommodates enclosure mounting points up to 14.3" (365mm) apart
• Slots in brackets for use with Altelix heavy-duty adjustable stainless steel bands (sold separately)

Applications:

• Rohn® 25G tower installations
• Campbell® UT6 and UT10 tower installations
• Amerite® AME 25 tower installations
• Pole mount installations
• Altelix NP series enclosures
• Altelix NF series enclosures
• Altelix NFC series enclosures
• Altelix NS/NX series enclosures
