Altelix NMFS-600 Heavy Duty Galvanized Steel Flange Wall Mount Kit for NFC322412 NS242412 NS242416 NS242424 NS282416Series NEMA Enclosures

The Altelix NMFS-600-16 Pole Mount Kit attaches to the rear of NFC322412, NS242412, NS242416, NS242424, NS282412 and NS322416 series NEMA enclosures. These heavy-duty galvanized steel brackets allow the enclosures to be securely mounted to most walls and structures.

Heavy-Duty Construction

The NMFS series flange wall mounts kits are designed for rugged all weather installations. The (2) included mounting brackets are constructed from 11 gauge (0.12 inch thick) galvanized steel.

The NMFS-600 kit includes:

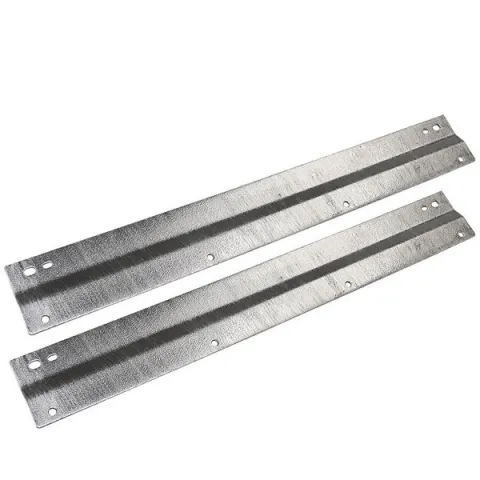

• (2) 11 gauge galvanized steel flange wall mounting brackets

The NMFS-600 is for use with the following enclosures:

• NFC322412 Series FRP Enclosures
• NS242412 Series Steel Enclosures
• NS242416 Series Steel Enclosures
• NS242424 Series Steel Enclosures
• NS282416 Series Steel Enclosures
• NS322416 Series Steel Enclosures

Features:

• Includes (2) 11 Gauge Heavy-Duty Galvanized Steel Flange Mounting Brackets
• Easily Attaches to Rear of Enclosure
• Mounting Brackets Material - 11 Gauge (3.0mm) Galvanized Steel
• Mounting Bracket Dimensions - 23.6 x 3.1 inch (600 x 79.3 mm)

Applications:

• Wall Mount Installations
• NFC322412 Series
• NS242412 Series
• NS242416 Series
• NS242424 Series
• NS282416 Series
• NS322416 Series
