The Altelix NMFS-400 Flange Wall Mount Kit attaches to the rear of the Altelix NFC, NS and NX series NEMA enclosures. These heavy-duty galvanized steel brackets allow the enclosures to be securely mounted to most walls and structures.
Heavy-Duty Construction
The NMFS series flange wall mounts kits are designed for rugged all weather installations. The (2) included mounting brackets are constructed from 11 gauge (0.12 inch thick) galvanized steel.
The NMFS-300 kit includes:

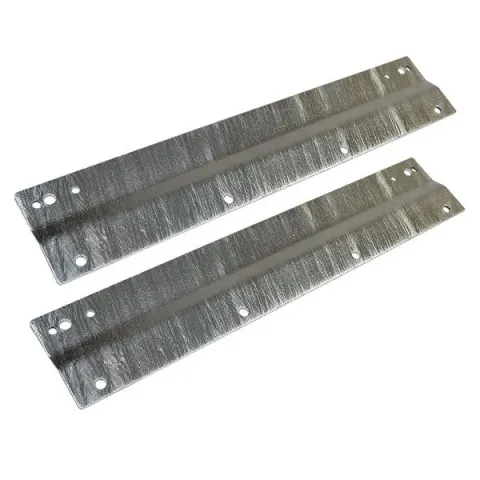

- (2) 11 gauge galvanized steel flange wall mounting brackets
The NMFS-400 is for use with the following enclosures:
- NF201612 Series FRP Enclosures
- NFC161608 Series FRP Enclosures
- NFC201608 Series FRP Enclosures
- NFC241609 Series FRP Enclosures
- NS161608 Series Steel Enclosures
- NX161608 Series Stainless Steel Enclosures
- NS201608 Series Steel Enclosures
- NS201612 Series Steel Enclosures
- NX201612 Series Stainless Steel Enclosures
- NS241610 Series Steel Enclosures
- NS241612 Series Steel Enclosures
Features:
- Includes (2) 11 Gauge Heavy-Duty Galvanized Steel Flange Mounting Brackets
- Easily Attaches to Rear of Enclosure
- Mounting Brackets Material - 11 Gauge (3.0mm) Galvanized Steel
- Mounting Bracket Dimensions - 15.7 x 3.1 inch (400 x 79.2 mm)
Applications:
- Wall Mount Installations
- NF201612 Series
- NFC161608 Series
- NFC201608 Series
- NFC241609 Series
- NS161608 Series
- NX161608 Series
- NS201608 Series
- NS201612 Series
- NX201612 Series
- NS241610 Series
- NS241612 Series
