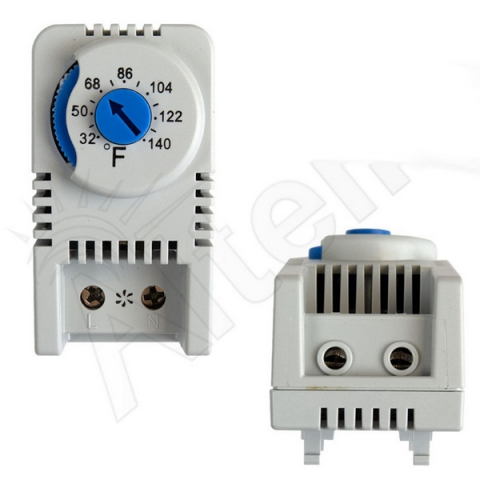

Altelix NHTU-DIN -32F to 140F Adjustable DIN Rail Mount Temperature Control Thermostat with Fahrenheit Scale - Normally Open

The Altelix NHT-DIN series are DIN Rail mountable adjustable mechanical thermostats. These thermostats feature easy to read dials with temperature setting in Fahrenheit. With an adjustable temperature range from -32°F to 140°F, these thermostats are ideal to control heater, fans, cooling equipment and alarm signaling devices. 2-pole clamp style power terminals on the bottom of the thermostat makes wiring easy and secure.

Normally Open Operation

When the ambient temperature is lower than the temperature set by the thermostat, the circuit is open and the cooling equipment stops.When the ambient temperature is higher than the temperature set by the thermostat, the circuit closes and the cooling equipment starts.

Features:

• Easy to Read Dial in Fahrenheit
• Compact Size
• 15A Current Rating at 120VAC
• Wide Temperature Range -32°F to 140°F
• Color Coded Temperature Adjustment Dials
• Bottom Mounted 2-Pole Clamp Style Power Terminals
• DIN Rail Mountable
• Normally Open (NO)

Applications:

• Control of Fans, Cooling Equipment and Heating Equipment
• Signal Alarm Devices
• Enclosure Cooling Fan Thermostat Control
• Enclosure Heat Thermostat Control
• DIN Rail Enclosures
• Outdoor Electrical/Electronic Enclosure Installations
• Network Equipment Racks
• Media Closets and Cabinets
• Food Storage Equipment
