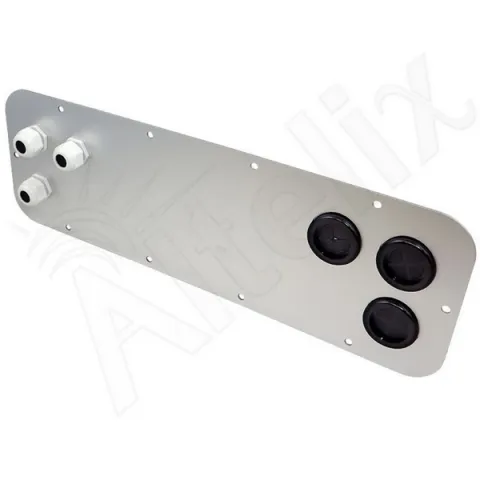

Altelix NHM20A-H3G3 Aluminum Access Panel with 3 PG16 Cable Glands & 3 Cable Grommets for NS242012 NS242412 NX242416 NS242416 and NS242424 Enclosures

The Altelix NHM20A-H3G3 Aluminum Access Panel is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This panel is a direct replacement for the steel access panel included with the NS and NX enclosures.

Cable Glands

This panel includes (3) of sealed PG16 cable glands. These unique cable glands feature a closed inner seal which when installed into the open ports they maintain a water tight seal when not in use. When required for use, simply punch a hole through the inner membrane, run your cable and tighten for a water tight seal. The ports used for these cable glands can also be used with 1/2" liquid-tight fittings (not included).

Cable Grommets

In addition to the cable glands, (3) large 40mm cable grommets are included. These cable grommets are idea for use with larger diameter cables or cable bundles. The NHM20A-H3G3 is constructed from 0.10" (2.5mm) thick aluminum and features a textured finish.

This panel is for use with the following enclosures:

• NS242012 Series
• NS242412 Series
• NS242416 Series
• NX242416 Series
• NS242424 Series
• NS282416 Series
• NS322416 Series

Features:

• Heavy Duty Aluminum Construction
• Includes (3) Sealed PG16 Cable Glands and (3) 40mm Cable Grommets
• Direct Replacement for Panels Included with NS Enclosures
