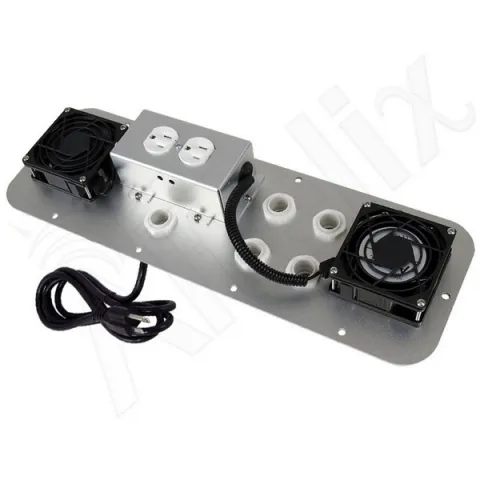

Altelix NHM20A-FA1R2C Power Module with Single 120VAC Duplex Outlet and Cooling Fan for NS242012 NS242412 NX242416 NS242416 and NS242424 Enclosures

The Altelix NHM20A-FA1R2C Power Module with 120VAC Outlets and Cooling Fan is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This power module is a direct replacement for the steel access panel included with the NS and NX enclosures.

Power Module

The NHM20A-FA1R2C is constructed from 0.10" (2.5mm) thick aluminum and features a single pre-wired duplex 120VAC power outlet (2 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.

Dual Cooling Fans Ventilation

This power module features dual 3" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans helps maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use.

The NHM20A-FA1R2C is for use with the following enclosures:

• NS242012 Series
• NS242412 Series
• NS242416 Series
• NX242416 Series
• NS242424 Series
• NS282416 Series
• NS322416 Series
