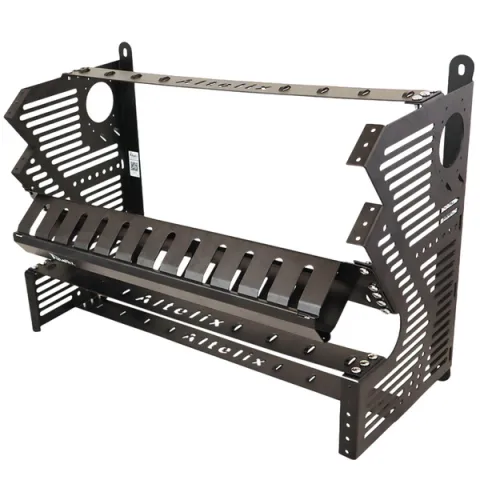

Altelix NHBS-RACK-NF1620-CR Space Saver 19" Wide Wall Mount Slanted Equipment Rack with 1U Cable Management Raceway

Space Saving Design

The NHBS-RACK-NF1620 is a standard EIA-310 compliant 19" wall mount equipment rack frame that features a unique space saving design to accommodate rack mount equipment up to 12" inches deep in a rack only 9" inches deep. Two 1U slanted sections are provided for 12" deep equipment as well as one horizontal 2U section for equipment up to 6" inches* deep. Constructed from heavy duty powder coated steel, additional features included zip tie mounting points throughout the rack frame for cable management and vented side panels ensure maximum air flow around installed equipment. In additional to the slanted 1U and horizontal 2U locations, a separate location is provide for an optional 1U cable management raceway to be installed.

*Installation Note: Size of equipment installed in the slanted 1U sections may decrease max. equipment depth in horizontal 2U section to 4" inches deep.

Maximum Air Circulation

The vented side panels of the NHBS-RACK-NF1620 ensure maximum air flow around installed equipment. In addition, two provisions are provided to install 60mm fans for increased air circulation.

1U Cable Management Raceway

Included with the NHBS-RACK-NF1620 1U cable management raceway. A separate mounting location is provided on the rack frame for the raceway leaving the other locations free for equipment to be mounted.

Included with the NHBS-RACK-NF1620 are #10-32 Screws for mounting equipment and rack assembly and (4) Concrete Anchors.

Features:

• Space Saving Design, Only 9" Deep
• (2) 1U Slanted Sections for Equipment up to 12" Deep and (1) 2U Horizontal Section for Equipment up to 6" Deep*
• 1U Cable Management Raceway Included
• Heavy Duty Steel Construction and Powder Coat Finish
• Rack Frame Only 9" Deep
• Includes #10-32 Screws for Mounting Equipment and Concrete Anchors
• Vented Frame Design Ensures Maximum Air Flow Around Installed Equipment
• Provisions to Mount (2) 60mm Cooling Fans for Increased Air Circulation
• Easy to Assemble
• EIA-310 Compliant

Applications:

• 19" Rack Mountable Equipment
• Rack Mountable Audio/Video Equipment
• Networking Equipment
• Rack Mounted Power Strips
• Ideal for Use in NEMA Enclosures and Cabinets
