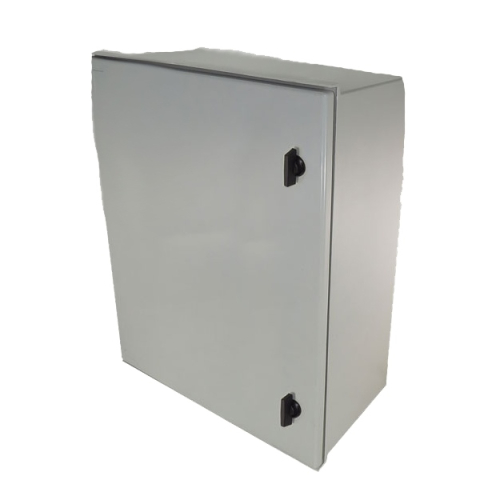

Altelix NFC242009HA1 NFC Series 24x20x9 NEMA 4X Fiberglass Heated Weatherproof Enclosure with 400W Heater & 120 VAC Outlets

The Altelix NFC242009HA1 NEMA 4X Heated Weatherproof Enclosure with 120VAC Power and Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

Construction and Features

This rugged IP66 rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

Aluminum Equipment Mounting Plate

The equipment mounting plate is provided for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Bonus Aluminum Bottle Opener Key

This enclosure now includes Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

Power

This configuration consists of the fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired duplex 120VAC power outlets (4 outlets total). The outlet box is easily removable to facilitate wiring to an external power source.

400W Heating System

Ideal for extreme cold environments, this model also features two 200W (400W total) thermostat controlled heaters. The heaters turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). Both heaters are situated below the mounting plate and wired internally so it does not interfere with user installed equipment or require the use of the AC outlets.

Cable Glands

The enclosure features unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal. To provide power to the enclosure a 1/2" Liquid-Tight fitting as well as a PG16 Cable Gland are included.

Mounting

Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure.

Features:

• Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
• Includes Aluminum Equipment Mounting Plate
• (4) 120VAC Outlets
• Thermostat Controlled 400W Heating System
• Dual Quarter-Turn Door Latches
• Bonus Aluminum Bottle Opener Key Now Included!
• (4) Mounting Feet Included
• Liquid-Tight Fitting and RG16 Gland Included for Providing Power to the Enclosure
• NEMA Type 4, 4X / IP66 Rated

Applications:

• Outdoor WiFi Installations
• SCADA, Remote Terminal Unit
• Security and Video Surveillance NVR Systems
• Protection of Equipment from Theft or Damage
• Concealment of Equipment
• Tunnel and Mining Installations
• Railroad Facilities
• Mills & Refineries
• Cement and Chemical Plants
• Food Processing Facilities
• Warehouses and Loading Docks
• Marinas and Marine Terminals
• Golf Courses, Resort Properties and Recreational Areas
• Building Maintenance Areas
• Building Rooftop or Basement
• Parking Lots and Garages
• Weather Stations
