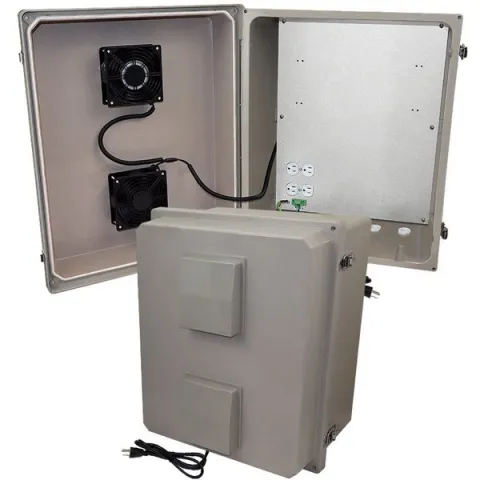

Altelix NF201612VFA1C-85 NF Series 20x16x12 Fiberglass Weatherproof Vented NEMA Enclosure with 85 degree Turn On Dual Cooling Fans 120 VAC Outlets

Plug and Play Power for Easy Setup

The Altelix NF201612V Series Enclosures are designed with all the same rugged components as NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. The NF201612VFA1C is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Four pre-wired 120VAC power outlets inside the enclosure provide power to your equipment. The finished aluminum equipment mounting plate can be easily drilled by the installer for unique application requirements.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Dual Cooling Fans - 85°F (30°C) Turn-On

The NF201612VFA1C-85 is designed for applications which require the cooling fans to turn on at a lower temperature than standard fan cooled enclosures. The low noise, high airflow fans help maintain lower internal temperatures by providing air flow through the enclosure. The fans turn on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.

Extreme Protection Built to Last

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Increased Interior Space

The NF201612V series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF201612V can accommodate a wide range of equipment.

Cable Glands

The enclosure features unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Removable Terminal Block

This enclosure features 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting

Stainless steel brackets are included for secure wall mounting.

Features:

• New Larger 20x16x12 Size to Accommodate More Equipment!
• (2) 85°F (30°C) Turn-On Thermostat Controlled Cooling Fans with 4" Vents, Rain Shields and Screens
• Four Pre-Wired 120VAC Outlets and 5 Foot 3-Prong Power Cord
• Aluminum Equipment Mounting Plate
• Extra Deep Extended Lid for Increased Equipment Clearance
• Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
• Stainless Steel Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Cable Glands and Stainless Steel Mounting Feet
• RF Transparent Enclosure

Applications:

• Rapid Deployment Systems
• Harsh Environments
• WiFi Enclosure
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
