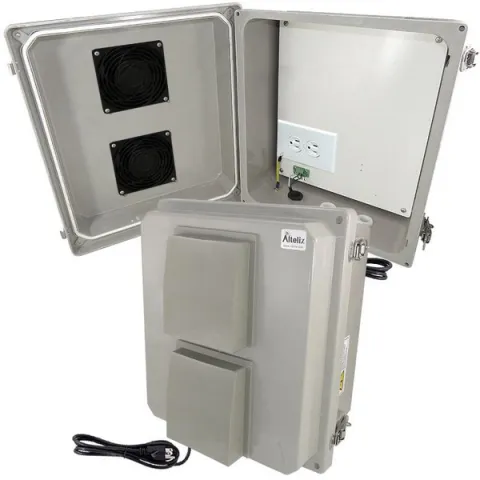

Altelix NF141208VMA1C NF Series Fiberglass Weatherproof Vented WiFi NEMA Enclosure 120 VAC Outlets Power Cord & No-Drill PVC Equipment Mounting Plate

Vented Enclosure with Plug and Play Power for Rapid Deployment

The Altelix NF141208VMA1C Vented NEMA enclosure is ideal for rapid deployment because no wiring is required, Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The 0.25" (6.4mm) thick PVC non-metallic RF transparent equipment mounting plate features two pre-wired 120VAC power outlets for your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Wireless Compatibility

This RF transparent enclosure and non-metallic equipment mounting plate are ideal for wireless applications including WiFi, RFID, iOT, Cellular and more. The non-metallic materials will not interfere with the operation of wireless gear. The generous size of this enclosure accommodates a wide range of equipment.

No-Drill Non-Metallic Equipment Plate

This configuration consists of the FRP enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.

Vented NEMA Enclosure

This enclosure features two 4 inch air vents covered by rain shields, allowing ventilation of installed equipment or batteries while maintaining weatherproof protection.

Extreme Protection Built to Last

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

Cable Glands

The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Removable Terminal Block

This enclosure features 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting

Stainless steel brackets are included for secure wall mounting.

Features:

• No Electrical Wiring Required
• Features a No-Drill PVC Non-Metallic Equipment Mounting Plate - Mount your equipment securely without the need for drilling!
• Pre-wired 5 foot 3-Prong Power Cord
• Two (2) 4" Vents with Rain Shields and Screens
• (2) Pre-Wired 120VAC Outlets
• Removable 120VAC Terminal Block
• Extended Lid for Increased Equipment Clearance
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Cable Glands and (4) Stainless Steel Mounting Feet
• RF Transparent Enclosure

Applications:

• Rapid Deployment Communications
• Emergency Communications Systems
• Harsh Environments
• WiFi Enclosure
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor Use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
• Battery and Charger Box
