Altelix NF141208VM NF Series 14x12x8 Vented Fiberglass Outdoor RF Transparent WiFi NEMA Enclosure with No-Drill PVC Equipment Mounting Plate

RF Transparent Vented NEMA Enclosure with No-Drill Non-Metallic Plate

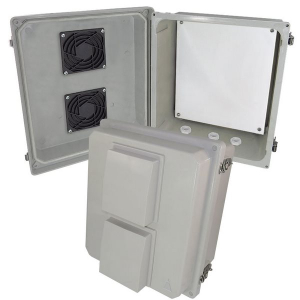

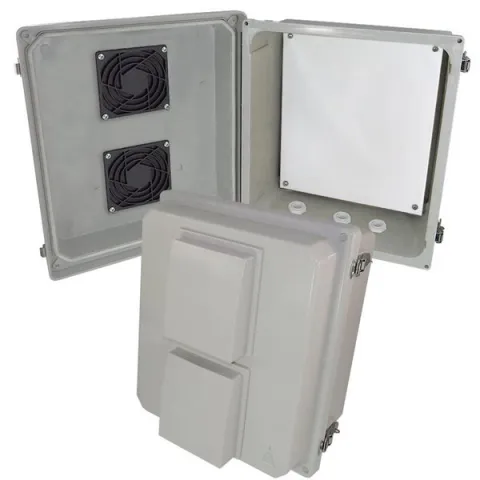

The Altelix NF141208VM Vented Weatherproof NEMA Enclosure features two 4 inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting equipment from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.

Extreme Protection Built to Last

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. It is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is non-conductive and RF transparent. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

No-Drill Non-Metallic Equipment Plate

This configuration consists of the vented FRP enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.

Wireless Compatibility

This RF transparent enclosure and non-metallic equipment mounting plate are ideal for wireless applications including WiFi, RFID, iOT, Cellular and more. The non-metallic materials will not interfere with the operation of wireless gear. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

Mounting

Stainless steel brackets are included for secure wall mounting.

Features:

• Two (2) 4" Vents with Rain Shields and Screens
• Features a No-Drill PVC Non-Metallic Equipment Mounting Plate - Mount your equipment securely without the need for drilling!
• Water Resistant JIC Enclosure Design with Gasketed Lid
• Extended Lid for Increased Equipment Clearance
• NEMA Type 3R, 3RX / IP24 Rated
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Includes Cable Glands and Stainless Steel Mounting Feet
• RF Transparent Enclosure and Plate

Applications:

• Rapid Deployment Systems
• WiFi Enclosure
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Solar Equipment Enclosure
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
• Harsh Environments
• Battery and Charger Box
