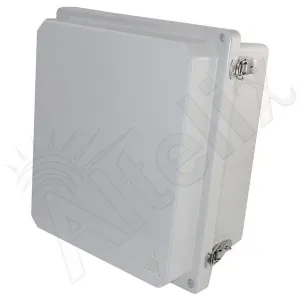

Altelix NF141208-DIN-0 14x12x8 Industrial DIN Rail Enclosure Fiberglass NEMA 4X IP66 w/o Pre-Drilled Cable Gland Holes (Cable Glands not Installed)

NEMA 4X Weatherproof Protection for DIN Rail Mounted Equipment

The Altelix NF141208-DIN NEMA 4X Weatherproof DIN Rail Enclosure features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 10 adjustable DIN rail mounting positions. For convenience, the enclosure also includes two pre-cut steel 35mm top-hat rails and mounting hardware.

Extreme Protection Built to Last

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

Mounting

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.

Features:

• Steel Din Rail Mounting Brackets with 10 Rail Mounting Positions
• Includes (2) Steel 35mm Top Hat DIN Rails and Screws
• Extended Lid for Increased Equipment Clearance
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
• RF Transparent Enclosure
• Without Cable Glands Installed

Applications:

• Rapid Deployment Systems
• DIN Rail Mounted Equipment
• Harsh Environments
• Building Automation Controls
• Industrial Controls Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Solar Equipment Enclosure
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
