Altelix NF141206VMFE1 NF Series 14x12x6 PoE Powered Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan & 2-Port PoE Power Splitter

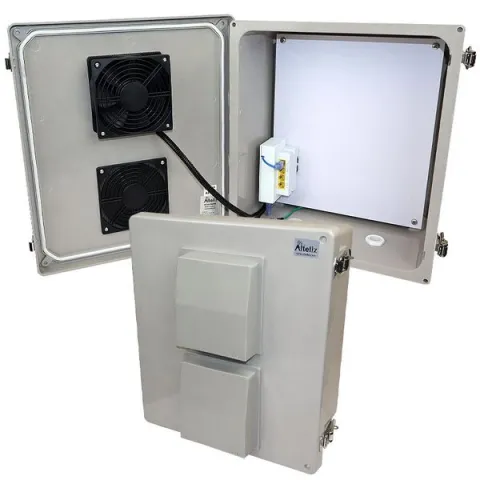

PoE Powered Fan Cooled NEMA Enclosure

The Altelix NF141206VMFE1 Vented FRP NEMA Weatherproof PoE Enclosure with DC Cooling Fan and Non-Metallic Equipment Mounting Plate is ideal for protecting Power-Over-Ethernet (PoE) enabled equipment from harsh environments and tampering. Using a single Ethernet cable to provide power and data, this enclosure can be installed in remote locations with no power outlets available.

Integral Gigabit PoE/PoE+ Repeater / Power Splitter

Featured in this enclosure is an integral Gigabit PoE repeater/power splitter mounted to the equipment mounting plate. This Gigabit PoE splitter is used to power the thermostat controlled DC cooling fan as well as providing data+power to one or two PoE enabled devices installed inside the enclosure. The PoE splitter is compatible with IEEE 802.3af/at standards and features 10/100/1000Mbps data speeds.

PoE Powered Cooling Fan

The NF141206VMFE1 features dual 4" vents and a thermostat controlled PoE powered DC cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds on the front door keep rain water from entering the enclosure.

No-Drill Non-Metallic Equipment Plate

This enclosure includes a no-drill non-metallic 1/4" thick PVC equipment mounting plate. Due to the "No-Drill" design of this plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design

The NF141206VMFE1 is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The size of this enclosure will accommodate a wide range PoE wireless equipment.

Extreme Protection Built to Last

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

Cable Glands

This enclosure features three of unique PG-16 cable glands. The first is a specially designed cable gland which will allow a pre-terminated Ethernet cable to be fed into the enclosure. The second two glands features a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

Stainless steel brackets are included for secure wall mounting.

Features:

• Integral Gigabit PoE/PoE+ Repeater/Power Splitter Which Provides Power+Data for up to (2) PoE Devices
• Thermostat Controlled PoE Powered DC Cooling Fan
• Two (2) 4" Vents with Rain Shields and Screens
• Features a No-Drill Non-Metallic Equipment Mounting Plate - Mount Your Equipment Securely Without the Need for Drilling
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Cable Glands and Stainless Steel Mounting Feet
• RF Transparent Enclosure

Applications:

• PoE Network Equipment Deployment
• Indoor / Outdoor WiFi PoE Access Points and Routers
• Installation in Remote Locations Without Available Power
• Security and Surveillance Systems
• Outdoor Use of Indoor Equipment
• Protection of Equipment From Theft or Damage
• Concealment of Electronic Equipment
