Altelix HBR-002-TPL-P5-DIN Mounting Bracket for TP-Link TL-SG105 Switch with 35mm DIN Rail Clip

The Altelix HBR-002-TPL-P5-DIN is a utility shelf designed for use with the TP-Link® TL-SG105 switch. Constructed from heavy duty aluminum, this utility shelf allows the TP-Link® TL-SG105 switch to be securely mounted into an enclosure, equipment rack or closet as well as wall mounted.

Secure the TP-Link® TL-SG105

Included is a unique equipment mounting system designed to securely attach the TP-Link® TL-SG105 to the bracket. Easy to install, it locks the TL-SG105 into place using the key-hole slots on the bottom of the switch as well as an additional clamp. This mounting system will keep the TP-Link® TL-SG105 in place even when mounted vertically.

Multiple Mounting Options

The HBR-002-TPL-P5-DIN can be mounted to any of equipment mounting plates by drilling (4) holes. #6-32 machine screws are provided in the accessory kit as well as #6 thread forming screws for use with enclosures using non-metallic no-drill equipment mounting plates. The HBR-002-TPL-P5-DIN includes a 35mm DIN rail mounting clip. The clip can be attached to the bracket for either horizontal or vertical mounting.

TP-Link® is a trademark or registered trademark of TP-Link, Corp.

Features:

• Designed for use with TP-Link® TL-SG105 Switch
• Heavy Duty Aluminum Construction
• Equipment Mounting System Keeps Switch Securely in Place
• Includes Shelf, Equipment Clamps, Hook-and-Loop Mounting Strap and Mounting Screws

Applications:

• Secure the TP-Link® TL-SG105 Switch in Enclosures or Equipment Closets and Racks
• Wall Mounting
• Mount to 35mm DIN Rails

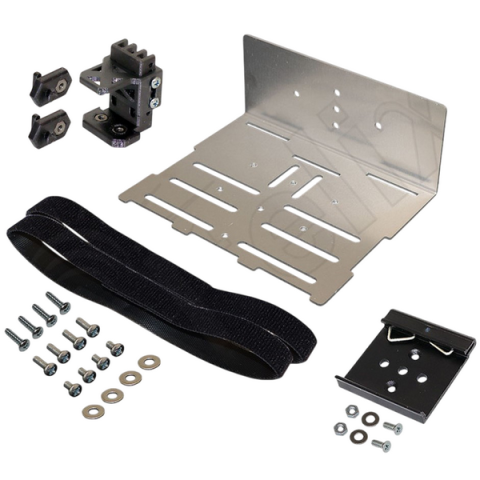

Accessory Kit includes:

• (4) #6-32x1/4" Mounting Screws
• (4) #6-32x1/2" Mounting Screws
• (4) #6 Thread Forming Screws
• (4) #6 Washers
• (2) Hook-and-Loop Straps
• (1) Switch Clamp
• (2) Key Hole Slot Pegs
• 35mm DIN Rail Clip
