Altelix HBR-002-DIN 5x4 Inch Aluminum Switch and Power Brick Utility Shelf with 35mm DIN Rail Clip

The Altelix HBR-002-DIN utility shelf is designed hold a wide range equipment from power supplies and power bricks to electronic devices. Constructed from heavy duty aluminum, this utility shelf features threaded and non-threaded holes for mounting equipment as well as provisions for using the included hook-and-loop strap.

Multiple Mounting Options

The HBR-002-DIN can be mounted to any of equipment mounting plates by drilling (4) holes. #6-32 machine screws are provided in the accessory kit as well as #6 thread forming screws for use with enclosures using non-metallic no-drill equipment mounting plates. For DIN rail mounting applications, the HBR-002-DIN includes a 35mm DIN rail mounting clip. The clip can be attached to the bracket for either horizontal or vertical mounting.

Features:

• Heavy Duty Aluminum Construction
• Threaded and Non-Threaded Holes for Mounting Equipment
• Provisions for Hook-and-Loop Strap
• Includes Shelf, Hook-and-Loop Mounting Strap and Mounting Screws

Applications:

• Secure Non-Mountable Devices in Enclosures or Equipment Closets and Racks
• Wall Mount
• Secure Power Supplies and Power Bricks

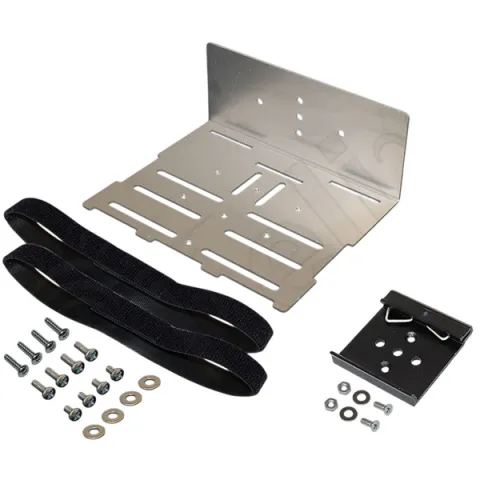

Accessory Kit includes:

• (4) #6-32x1/4" Mounting Screws
• (4) #6-32x1/2" Mounting Screws
• (4) #6 Thread Forming Screws
• (4) #6 Washers
• (2) Hook-and-Loop Straps
• 35mm DIN rail mounting clip
