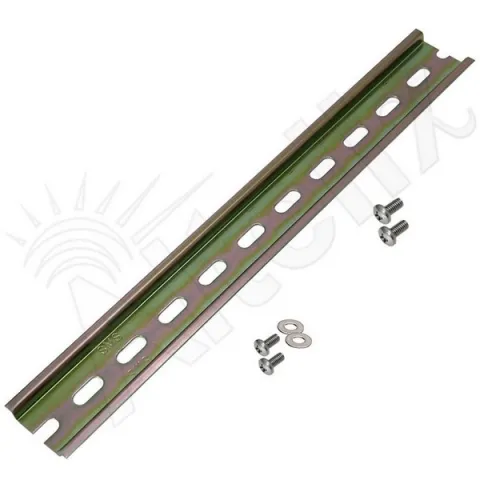

The Altelix DRS-NF12-NP14 is a 35mm Top Hat DIN Rail Kit for use with the Altelix NF141206, NF141208, NF141210, NP171406, NP171407 and NP171409 Series NEMA enclosures.
This DIN Rail Kit can be used with the following enclosures:
- NF141206, NF141208 and NF141210 Series Enclosures with Equipment Mounting Plates
- NF141206, NF141208 and NF141210 Series Enclosures with DIN Rail Mounts
- NP171406 Series Enclosures with Equipment Mounting Plates
- NP171407 Series Enclosures without Equipment Mounting Plates
- NP171409 Series Enclosures with or without Equipment Mounting Plates
Features:
- DIN Rail Material - 20 Gauge (0.04 inch) Steel
- DIN Rail Length - 11 In. (279.4 mm)
The kit includes:
- (1) 11" long 20 gauge steel 35mm top hat DIN rail
- (2) #8-32 Screws and Washers (For use with NF14 and NP17 enclosures with equipment mounting plates)
- (2) #10-24 Screws (For use with NF14 enclosures with DIN rail mounts)
