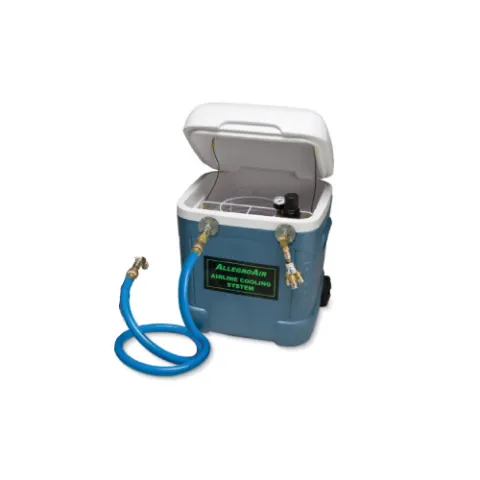

Allegro Industries 9820-HP Airline Cooling System, High Pressure

Designed for greater user comfort and increased worker productivity, the portable AllegroAir Airline Cooling System is the perfect solution to cool high pressure breathing air at a reduced cost. High pressure breathing air produced by air sources such as an air filtration panel or compressor cannot exceed 150 psi (10.34 bar). This lightweight yet highly effective cooling system is capable of reducing the breathing air temperature from 180º F (82.22° C) to as low as 50º F (10° C)!

Features:

• Construction:
  • 54 quart (51.1 liter) "MAXCOLD" Igloo Cooler
  • Durable wheels and locking telescope pull handle
  • 5' (1.52 m) long inlet supply hose
  • Heavy duty Hansen inlet coupler
  • Uses FDA Grade, 3-A sanitary standard, PVC tubing for temperature cooling coil
  • Pressure regulator includes a pressure gauge and adjustable knob with locking ring
  • Inline 5-micon particulate filter with manual drain
  • Single outlet coupler can adapt quickly to accept 3-worker manifold
  • Use with filtration panels, cascade system or compressor
  • Cooling system will provide cool air for hours

NOTE: The air temperature at the outlet coupler of the cooler will be approximately 50º F (10° C) to 60º F (15.5° C). However, the air temperature coming out of the end of the breathing air line at the respirator may be warmer due to exposure from breathing air temperature. This outlet temperature will vary depending on the location and environment of the hose and the temperature exposed.

For more information, please see Data Sheet #1 and Data Sheet #2
