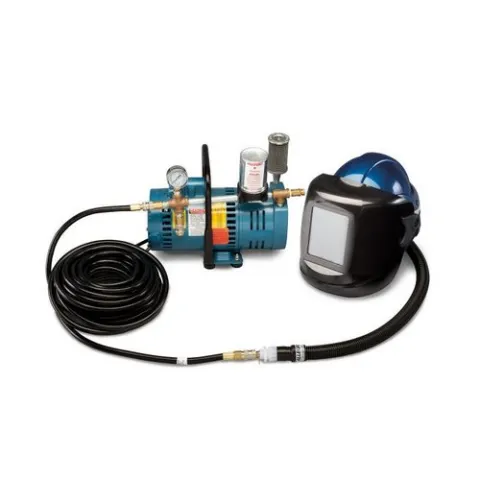

Allegro Industries 9249-01 1-Worker SAR Shield with Black Welding Helmet System with 50' Hose

This cost-effective system is used by foundries, aluminum plants, mines, chemical plants, refineries, auto manufacturers, metalworking and fabrication. Performance-proven with a constant and powerful supply of breathable air from a clean air source, this Shield with Black Welding Helmet provides protection from airborne contaminants, including hexavalent chromium applications, flying debris, sparks, chemical and molten metal splashes. The welding shield flips up, allowing the user to grind and clean metal while looking through the clear ANSI face shield. A large #10 lens is included. The Supplied Air Respirator delivers a constant and powerful supply of breathable air from a clean air source. Complies with ANSI Z89.1 Type 1 Class G for head protection and ANSI Z87.1+ for face-shield / eye protection. NIOSH-approved.

Features:

• Protection Factor:
  • A Certified 3rd Party Testing Lab was contracted to conduct a Simulated Workplace Protection Factor Study on the 9904 Series Respirator. The results of this study indicated that 9904 samples tested yielded 5th percentile protection factors greater than 1,000, allowing Allegro to claim that the 9904 Series Respirator qualifies for an APF of 1000 as permitted by OSHA.
• Air Shield / Helmet:
  • NIOSH-approved
  • Head protection: ANSI Z89.1 Type 1 Class G
  • Made of ABS
  • Low profile and lightweight, weighing only 3.620 lbs. (1.64 kg)
  • Visor: 0.480 lbs. (0.21 kg)
  • Quick-release suspension for easy cleaning
  • Made in USA
• Lens (Shield):
  • Eye protection: ANSI Z87.1-2003
  • Protection factor: APF 1000
  • Made of anti-fog polycarbonate
  • Viewing area: 15" x 6.75" (38.1 cm x 17.1 cm)
• Visor (Welding Helmet):
  • Made of Nylon 6
  • Large #10 lens included
  • 4" x 4.75" (10.1 cm x 12 cm)
  • Optional ADF lens sold separately
• Neck Cape:
  • Made of Stedprene (a fire retardant, polyurethane coated poly cotton fabric)
  • Added comfort
  • Protects user's neck from falling debris
• Downtube & Flow Controllers:
  • Corrugated flexible and lightweight glass-filled nylon for greater comfort and less fatigue
  • Easily interchangeable to Low Pressure or High Pressure
  • Four options available: Low Pressure Flow Adapter (PN 9910-11) (10-43 psi), High Pressure Flow Control Valve (PN 9992) (25-46 psi), Personal Cooler (PN 9991) (72-98 psi), Air Temperature Controller (PN 9990) (90-120 psi)
  • Made of PU-FR (Flame Retardant Polyurethane) with an ABS Helix. UL94 listed.
  • Low profile nylon adjustable waist belt

Includes:

• One Shield with Black Welding Helmet
• One 3/4 hp Breathing Air pump
• One 50' (15.2 m) Breathing Air hose

For more information, please see Data Sheet
