Ace Glass 7861-450 1000 mL Photochemical Ace‑Thred Complete Reaction Assembly 230 V, 50 Hz

Complete reaction assembly with all parts needed for immediate operation. Utilizes an internally threaded connection in place of the ground glass joint. Bushing and FETFE O-Ring form a compression type seal with immersion well. Well has removable inner cooling tube. Reactor has one - 14/20 angled joint for sparger tube, one - 24/40 vertical joint for condenser, and one - #7 Ace-Thred for thermometer. Volume indicated is total volume. Actual working volume is approximately 40-50% of total.

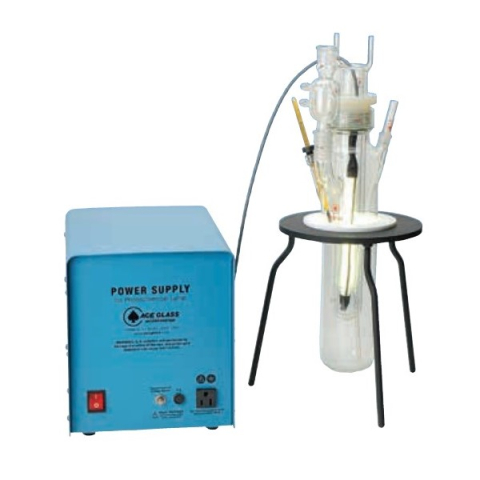

Complete assembly consists of reactor, 7874-38 quartz immersion well, sparger tube, PTFE stir bar, #7 nylon bushing with O-Ring, three meters of 4.8 mm I.D. PTFE tubing, stand, stand insert 450 watt lamp and 450 watt power supply.
