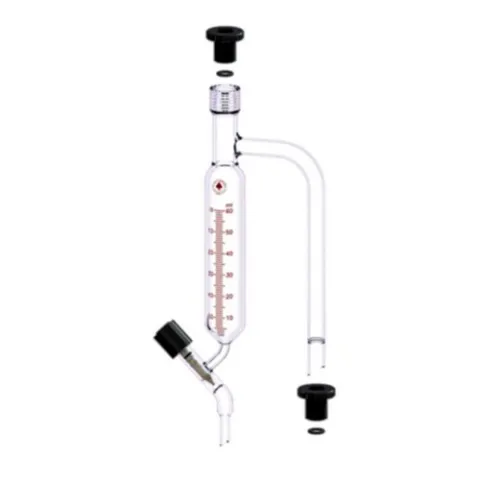

Ace Glass 7701-20 Moisture Test Receiver 60mL Graduated Pressure Complete with Two Nylon Bushings and O-Rings

Moisture test receiver utilizes Ace-Thred bushings to achieve a 45psi at 100 degrees C pressure rating when used in conjunction with Ace pressure reactors. Graduated receiver in 1ml subdivisions with PTFE bottom outlet stopcock.

Used to determine heavier-than-water, co-distilling solvent component content of reaction mixture. For use with ACE pressure reactors with #15 Ace-Thred. Side arm is connected to #15 Ace-Thred on pressure reactor head with bushing and size - 110 FETFE® O-Ring. The pressure condenser, with #15 top plug, is attached to #15 thread at top of receiver with bushing and O-Ring.

Receiver capacity is 60mL, graduated in 1mL subdivisions. Bottom outlet stopcock is a 0-3mm with FETFE O-Rings. Pressure rating is 45psig at100°C.

Complete consists of:

• Receiver
• (2) Nylon Bushings
• (2) O-Rings

Note: Condenser and #15 Plug NOT supplied - order separately.
