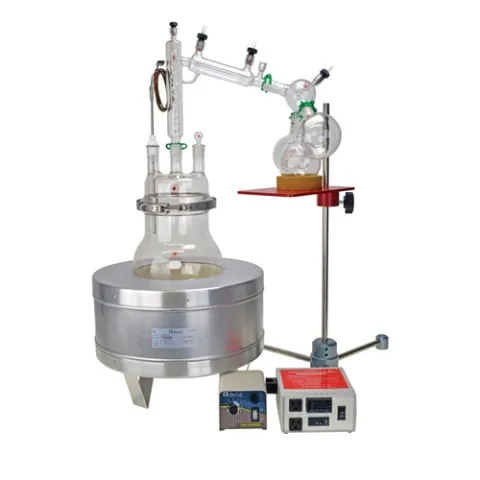

Ace Glass 6815-57 Two-Piece Flask Short Path Distillation System, 5000 mL

Short Path Distillation System, 5000mL glassware, heating and stirring package

Heating is accomplished with Ace Glass 12045-05 Glas-Col® Stirmantle system. Temperature control is provided via Ace Glass 12126-24 controller and J type probe. The easy cleaning, two piece flask design consists of Ace Glass 6533-08 5000 mL spherical reaction vessel in combination with Ace Glass 6531-16 150 mm ID Duran® o-ring flanged head featuring 24/40-45/50-24/40 necks and Ace Glass 6517-27 quick-release clamp. Two of the 24/40 necks are intended for temperature control and charging of the vessel while the center neck will be occupied with Ace Glass 6602-03 packable column featuring an alignment forgiving ball and socket connection to Ace Glass 6603-04 condenser. Product take-off glassware is Ace Glass 9404-20 receiver with (3) 24/40 500 mL receiving flasks.

Miscellaneous items to complete the system include a 24/40 stopper, 24/40 temperature probe adapter, 24/40 Keck® style joint clips, Ace-Safe™ connections for 3/8 and 1/2" ID tubing, vacuum monitoring port plug and 1/8" FNPT adapter if monitoring is desired. If so, Ace Glass 14034-36 vacuum monitor is an excellent choice. If in need of a condenser chiller, see Ace Glass 12450-07 Polyscience® chiller. If you need a vacuum pump, we recommend the Welch CRVpro8 (Ace 14113-08) 158 L/min two stage rotary vane pump with Ace Glass 12188-10 NW16 flange to hose barb adapter to fit 1/2" ID vacuum tubing. If you would like to maintain vapor temperature in the upper half of the flask, choose Ace Glass 12047-26 heating mantle, which will be powered along with the Stirmantle by using the supplied two socket 12126-24 temperature controller. Please see Ace Glass 6815-01 matched support package, Ace Glass 6815-02 cold trap package and Ace Glass 6815-03 tubing package to round out a complete benchtop system.
