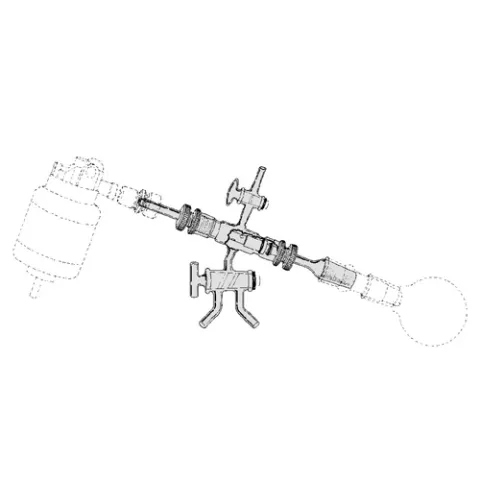

Ingenious rotary evaporator constructed of glass or stainless steel, PTFE and glass-filled PTFE that operates without the devices normally associated with this type of equipment. Use with any lab stirring motor. Stainless Steel 10 mm O.D. tube, with 24/40 at one end for flask and holes drilled near center for vacuum, attaches to laboratory stirring motor. Tube turns inside PTFE bearing held in #15 Ace-Threds by glass-filled PTFE bushing, compression saddle with O-Ring and lock nut. 2 mm straight bore stopcock attaches to drying tube and/ or Mcleod gauge. One arm of 4 mm bore double oblique stopcock attaches to dry ice trap and vacuum line; other arm is for easy vacuum release and can be connected to a trap.
Complete item supplied with joint clamp; does NOT include stirring motor, chuck, flask or splash guard.
