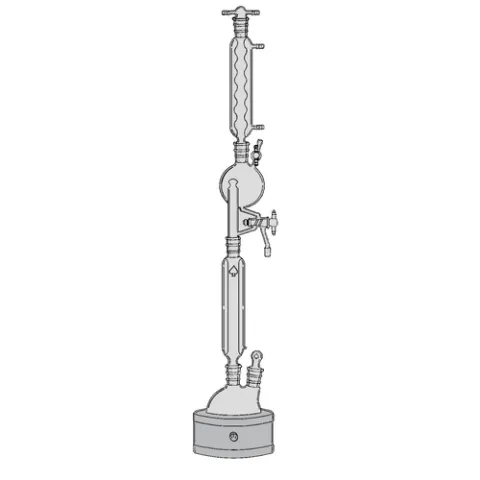

Ace Glass 6620-40 24/40 Continuous, Fuchs Reflux Apparatus, 1 L

Continuous reflux apparatus to keep solvents pure and free of oxygen. Compact, upright design allows multiple units to be assembled in small areas, i.e. 1000 ml - 9-inch diameter x 39 inches high, 2000 ml - 10-3/8-inch diameter x 41 inches high (shorter versions have been fabricated, inquire for details). Storage head has overflow high enough to allow storage of solvent for retrieval by syringe through upper part or through lower double oblique stopcock. lower drain is centered for complete drainage of head. Distillation column is 250 mm long, vacuum jacketed, unsilvered. Allihn condenser is 250 mm. Adapter at top has two hose connections for maintaining inert atmosphere. Stopcocks are 2 mm bore PTFE. Joint on lower drain arm is 14/20, all others 24/40. Complete unit consists of adapter, condenser, storage head, column, flask and mantle. Septum are optional. For replacement stopcock plugs, see 8224-04 and 8226-08.

The package includes:

• Adapter, 24/40 (1) - 5206-10
• Column, Vac. Jacketed (1) - 7793-04
• Condenser, Allihn (1) - 5945-13
• Head, Storage, 500mL (1) - 6620-12
• Flask, 1000mL (1) - 6927-32
• Stopper, 24/40 (1) - 8250-12
• Mantle, 1 Liter (1) - 12053-19
