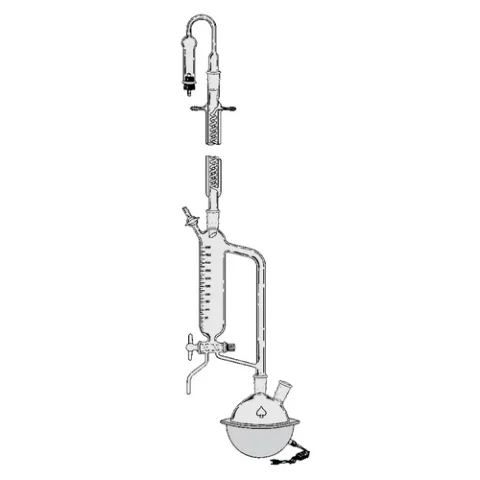

Ace Glass 6616-40 Complete Solvent Recovery Unit

Versatile unit for use as a solvent recovery still for azeotropic separations of solvents, either heavier or lighter than water. As a solvent recovery unit, the lower 4 mm PTFE double oblique stopcock permits total return to flask, total take-off, and total storage in the 500 mL graduated receiver. Bottom exit extends away from the distilling flask for easier takeoff. The 2 mm bore PTFE stopcock at top has tubing that will accept Ace Glass 9096 septum to permit use of a syringe for extracting smaller samples as needed, while avoiding air contact. Joints are 24/40. Complete item consists of head, flask, mantle, condenser, drying tube and 12 Septa.

The package includes:

• Distilling Head, only (1) - 6616-10
• Flask, 2 Neck, 24/40, 2 liter (1) - 6927-44
• Mantle (1) - 12043-21
• Condenser, Reflux, 24/40, 300 mm (1) - 5955-14
• Drying Tube, 24/40 (1) - 5170-10
• Septa (12) - 9096-32
