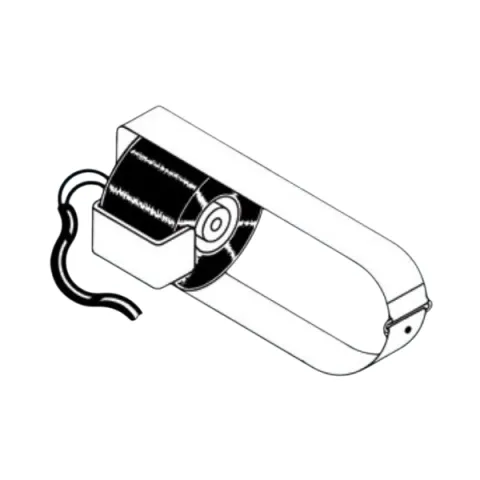

Ace Glass 6592-10 Coil 76mm OD x 44mm Height with Clamping Band and Core and Wiring 120V 50/60Hz 24VDC

Coil, 76mm OD x 44mm height, complete with clamping band, core and wiring, 30 seconds intermittent use, 120v 50/60Hz, 24vdc

With high permeability core to operate takeoff device on standard automatic distilling heads. Fastened to head with special clamp. Furnished complete with clamp and wires to connect to automatic time switch. For operation at 120 volt, 50/60 Hz AC max. or 24 volts DC max. For intermittent service only; 30 sec. maximum ON, 50% max. duty cycle.

Diameter of Core 28.6mm, Diameter of Coil 76mm, Height 44mm. For use with 6671 series repeat cycle timer.
